Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Always protect paint work and glass when removing exterior components.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect .
  2. Refer to: Fender Splash Shield .
  3. Refer to: Headlamp Assembly .
  4. Refer to: Front Door .
  5. G11312586
  6. G11312587
  7. G11312588
  8. G11312592

    Torque Specification: 10 Nm

  9. G11312591

    Torque Specification: 10 Nm

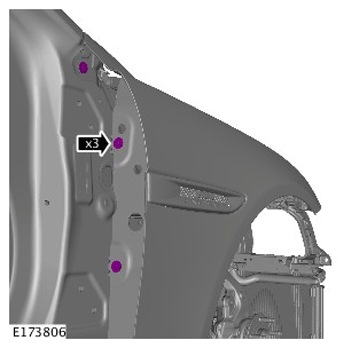

  10. G11290797

    Torque Specification: 10 Nm

  11. G11290796

    Torque Specification: 10 Nm

  12. G11311530
