Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. G11312435

    Using a suitbale tool, release the center seat belt from the buckle.

  2. G11307627
  3. G11312437

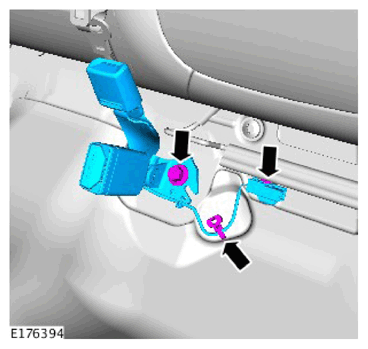

  4. G11312438

    Torque Specification: 48 Nm

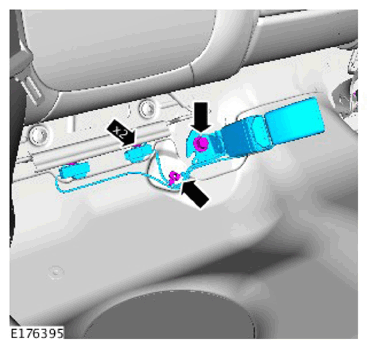

  5. G11312439

Torque Specification: 48 Nm
