Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to follow this instruction may result in personal injury.
To minimize the possibility of injury in the event of premature deployment, always carry a live air bag module with the bag and trim cover pointed away from the body. Failure to follow this instruction may result in personal injury.
To minimize the possibility of premature deployment, do not use radio key code savers when working on the supplemental restraint system. Failure to follow this instruction may result in personal injury.
To minimize the possibility of premature deployment, live air bag modules must only be placed on work benches which have been ground bonded and with the trim cover facing up. Failure to follow these instructions may result in personal injury.
Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure to follow this instruction may result in personal injury.
Painting over the driver air bag module trim cover or instrument panel could lead to deterioration of the trim cover and air bags. Do not for any reason attempt to paint discolored or damaged air bag module trim covers or instrument panel. Install a new component. Failure to follow this instruction may result in personal injury.

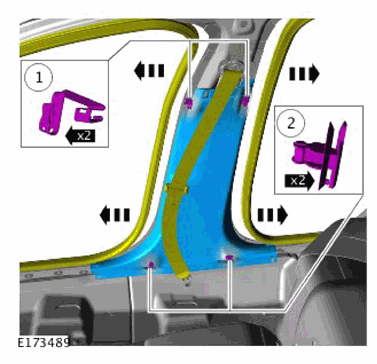

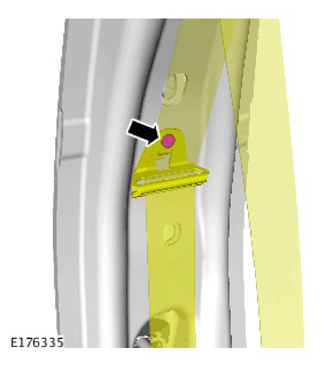

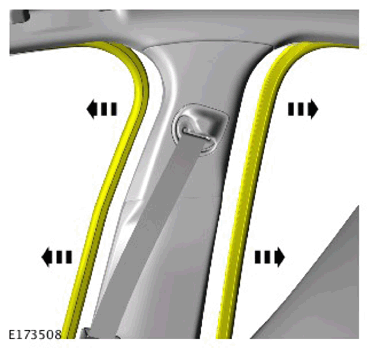

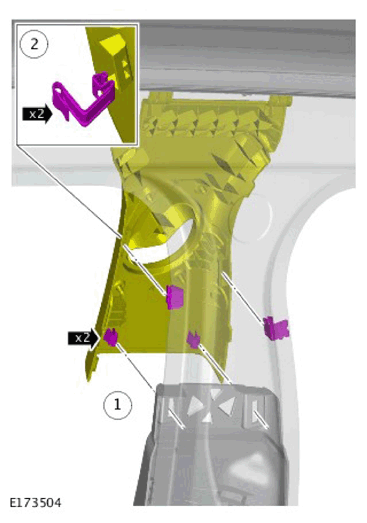

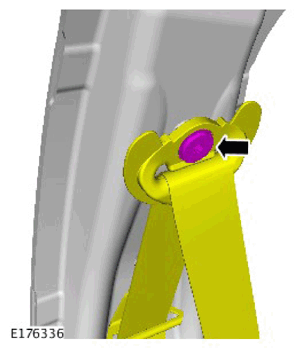

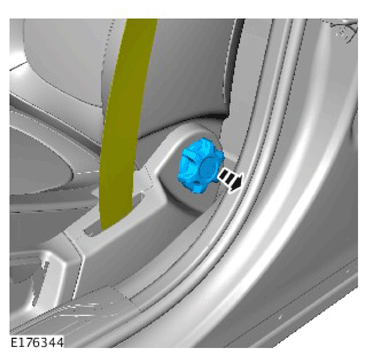

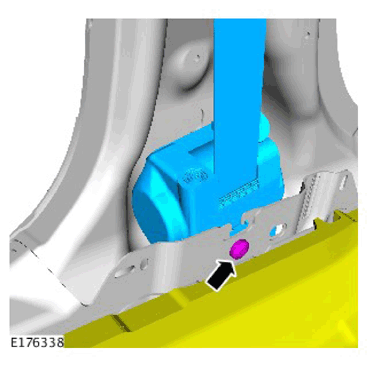

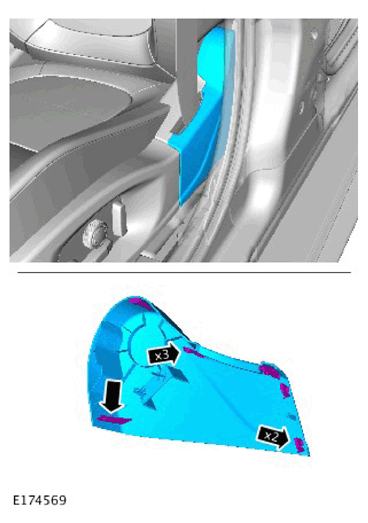

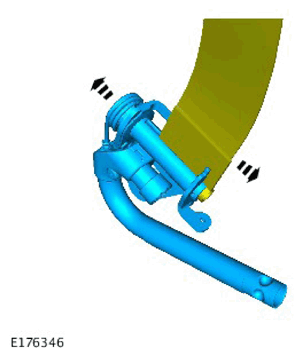

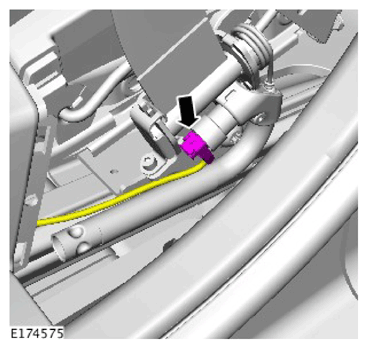

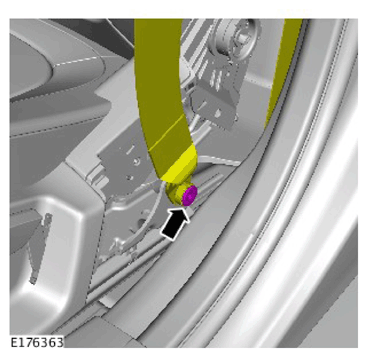

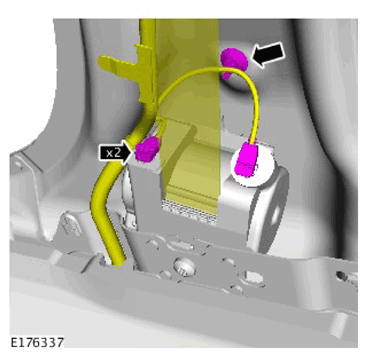

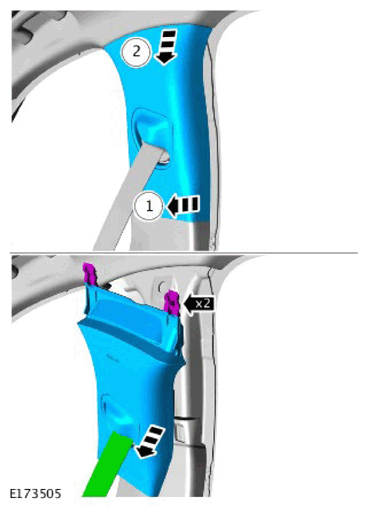

NOTE: Left illustration shown, right is similar.

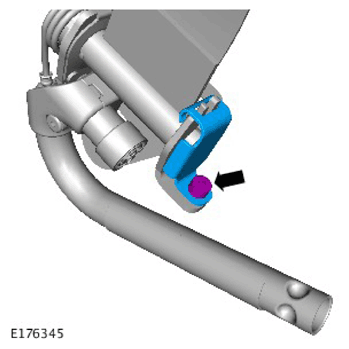

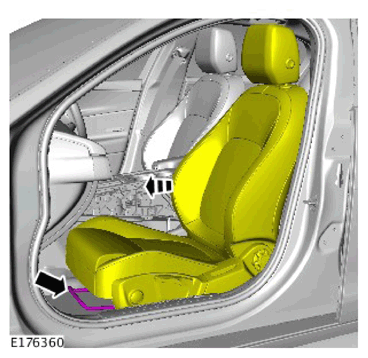

Vehicles with power seats

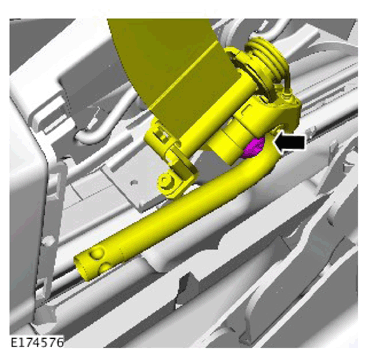

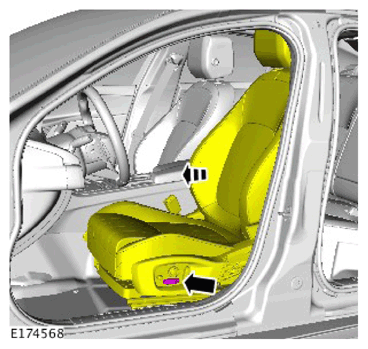

Vehicles without power seats
All vehicles
Torque Specification: 40 Nm
Refer to: Battery Disconnect and Connect .

Vehicles with power seats

Torque Specification: 40 Nm

All vehicles
WARNING: Failure to follow this instruction may cause damage to the vehicle.

CAUTION: Make sure the locating dowels are installed correctly.
NOTE: Install new retaining clips.
Torque Specification: 40 Nm
Torque Specification: 9 Nm
Torque Specification: 40 Nm

Vehicles with power seats
NOTE: Do not disassemble further if the component is removed for access only.
- Torque Specification: 4 Nm
