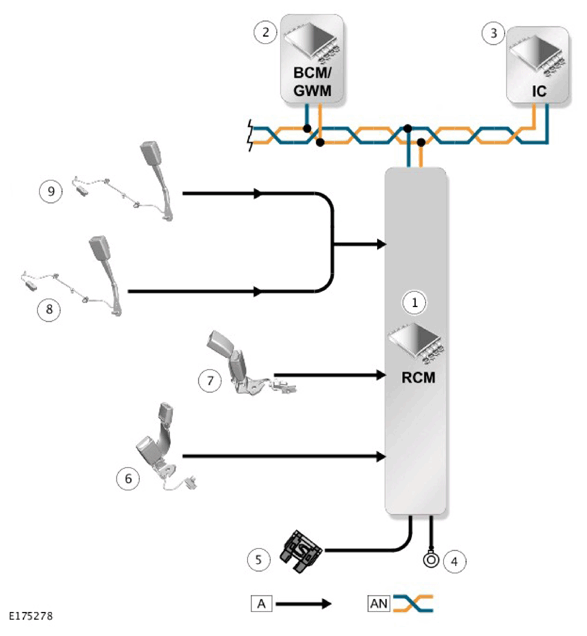

Input/Output Diagram - SEATBELT Reminder System
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AN = HS (HIGH SPEED) CAN (CONTROLLER AREA NETWORK) POWERTRAIN SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Restraints Control Module (RCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Instrument Cluster (IC) |
| 4 | Ground |
| 5 | Power feed |
| 6 | Rear left seatbelt buckle switch |
| 7 | Rear right and middle seatbelt buckle switches |
| 8 | Right seatbelt buckle switch |
| 9 | Left seatbelt buckle switch |
