Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • LHD shown, RHD is similar.

All vehicles

  1. Refer to: Cowl Vent Screen .

    Vehicles without Battery Back-Up Sounder

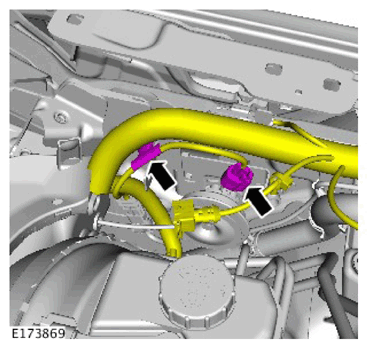

  2. G11311438

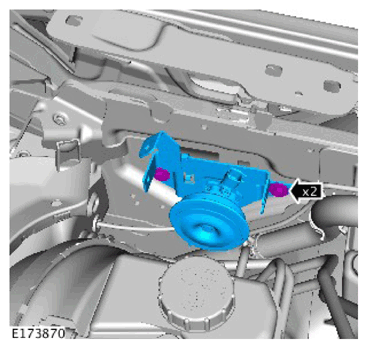

  3. G11311439

    Torque: 7 Nm

  4. NOTE: Do not disassemble further if the component is removed for access only.

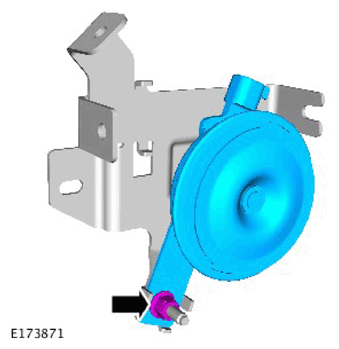

    G11311440

    Torque: 7 Nm

    Vehicles with Battery Back-Up Sounder

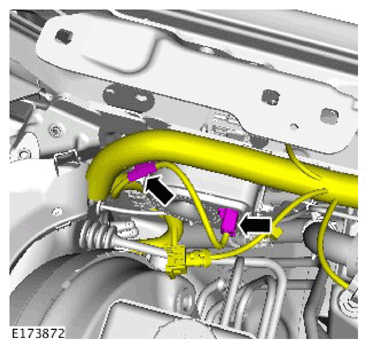

  5. G11311441

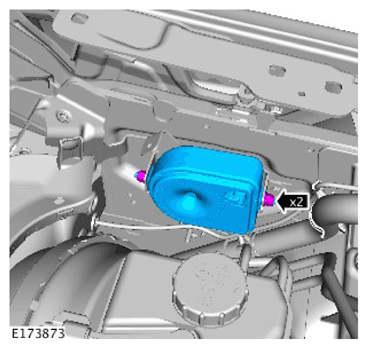

  6. G11311442

    Torque: 7 Nm
