Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Protect the surrounding paintwork to avoid damage.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  • Left hand illustration shown, Right hand is similar.
  1. Refer to: Exterior Rear Door Handle .

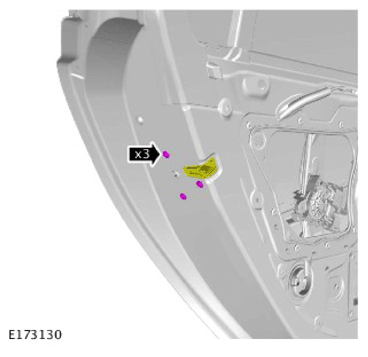

  2. G11312264

    Torque Specification: 7 Nm

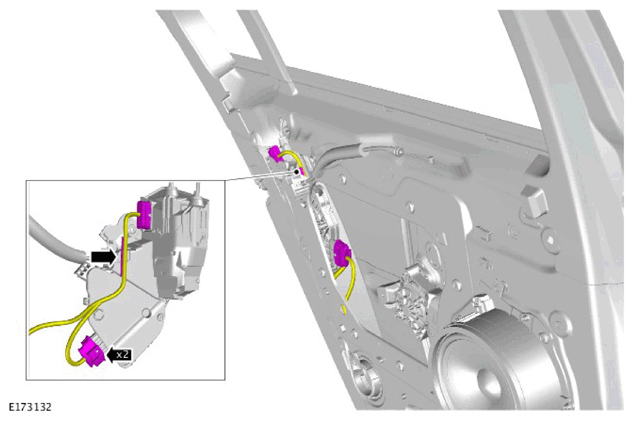

  3. G11312265

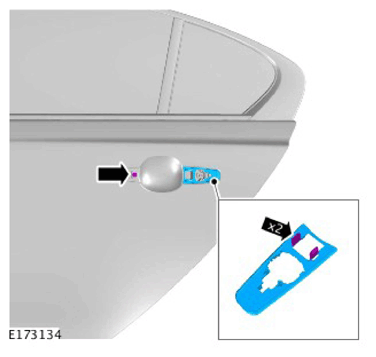

  4. G11312266

    Torque Specification: 3.2 Nm

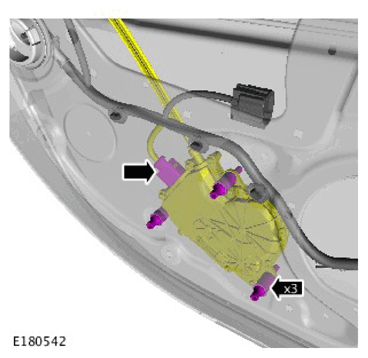

  5. G11312267

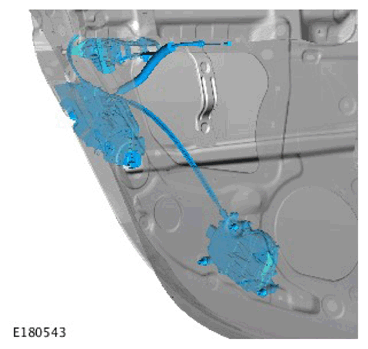

  6. G11312268

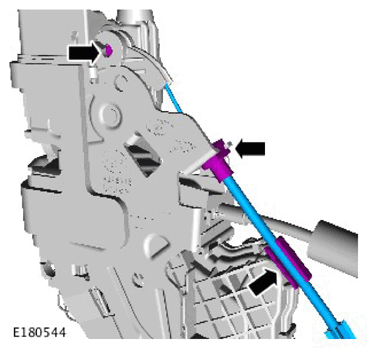

  7. G11312269
  8. NOTE: Do not disassemble further if the component is removed for access only.

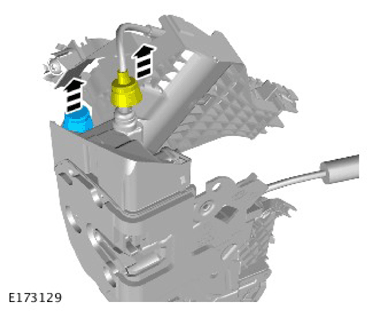

    G11312270

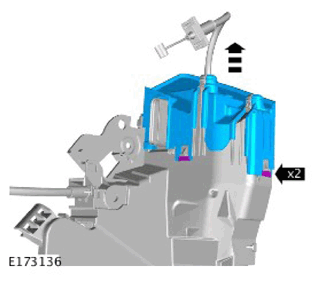

  9. G11312271

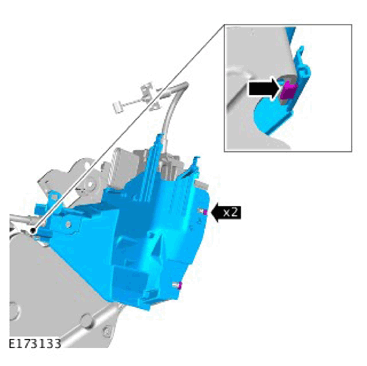

  10. G11312272

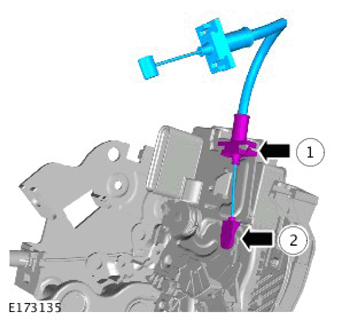

  11. G11312273

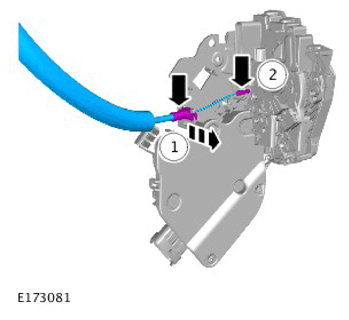

  12. G11312254
