Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Luggage Compartment Lid Latch Actuator .

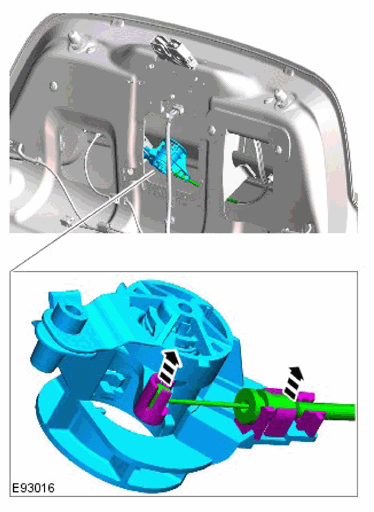

  2. G11312260

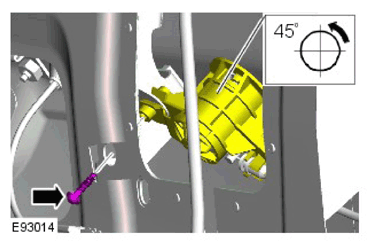

  3. G11312261

    Torque Specification: 3.2 Nm

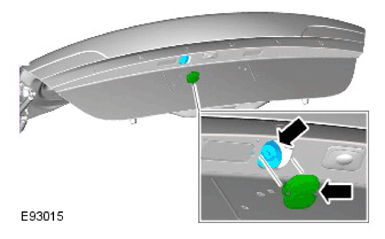

  4. G11312262
