Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Protect the surrounding paintwork to avoid damage.
NOTE: Removal steps in this procedure may contain installation details.

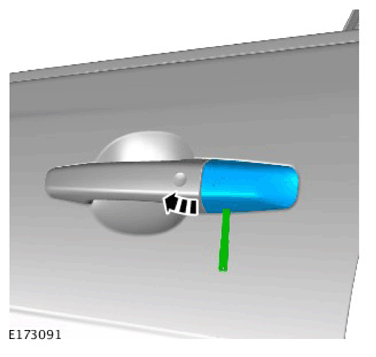

  1. G11312233

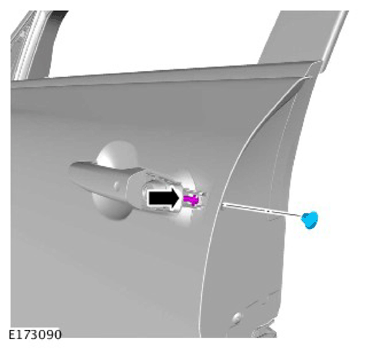

  2. NOTE: Loosen the bolt, but do not fully remove.
    G11312234

    Torque Specification: 4.1 Nm

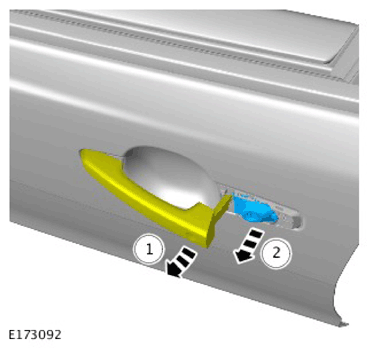

  3. G11312235
