Pinpoint Test E: Emergency Key Barrel Tests

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. E1: EMERGENCY KEY BARREL TEST 1
    1. Remove the interior door trim. Refer to Front Door Trim Panel .
    2. Check the emergency key barrel cable for correct installation to the door latch.

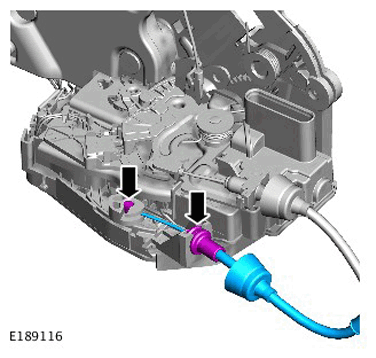

    G11290075

    Is the emergency key barrel cable correctly installed to the door latch?

    • Yes  : GO to E2.
    • No  : Install the emergency key barrel cable to the door latch. If the emergency key barrel cable is damaged, install a new emergency key barrel cable. GO to E4  .
  2. E2: EMERGENCY KEY BARREL TEST 2
    1. Using a suitable tool, close the door latch claw to the fully latched position.
    2. Using the emergency key, lock and unlock the door. Check that the emergency key barrel cable pushes and pulls the door latch linkage.

    Does the door latch linkage move when the door is locked and unlocked?

    • Yes  : GO to E3.
    • No  : Install the emergency key barrel cable to the exterior door handle. If the emergency key barrel cable is damaged, install a new emergency key barrel cable. GO to E4.
  3. E3: EMERGENCY KEY BARREL TEST 3
    1. Open the door.
    2. Using a suitable tool, close the door latch claw to the fully latched position.
    3. Using the emergency key barrel, lock the door.
    4. Using the exterior door handle, attempt to open the door latch.

    Did the door latch open?

  4. E4: EMERGENCY KEY BARREL TEST 4
    1. Check the operation of the emergency key barrel and door latch:
      • Close the door fully.
      • Using the emergency key barrel, lock the door.
        NOTE:
        • The door should not open during this sub-step.
        • The smart key must be out of range of the vehicle during this sub-step - Passive entry vehicles only.
      • Using the exterior door handle, attempt to open the door.
      • Using the emergency key barrel, unlock the door.
      NOTE: The door should open during this sub-step.
      • Using the exterior door handle, attempt to open the door.
    2. Perform step  1 a total of five times.

      Did the emergency key barrel and door latch function correctly during every test?

      • Yes  : Repair complete.
      • No  : Install a new door latch. Refer to: Front Door Latch .
