Pinpoint Test B: Interior Door Handle Tests

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. B1: INTERIOR DOOR HANDLE TEST 1

    If the door is a rear door, ensure that the child locks are not engaged and the fault is still present before continuing.

    1. Remove the interior door trim as necessary.

      Refer to Front Door Trim Panel , or Rear Door Trim Panel .

      G11312227

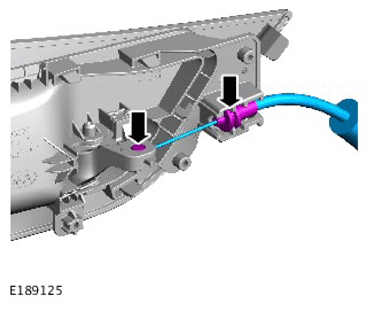

    2. Check the interior door handle release cable for correct installation to the interior door handle.

    Is the interior door handle release cable correctly installed to the interior door handle?

    • Yes  : GO to B2.
    • No  : Install the interior door handle release cable to the interior door handle. If the interior door handle release cable is damaged, install a new interior door handle release cable. GO to B4.
    G11312228

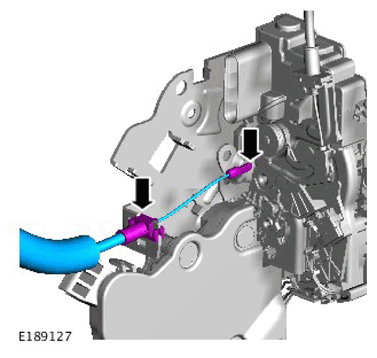

    NOTE: There is a redundant cable bracket on the door latch housing that is utilised by vehicles with soft closing. The interior door handle release cable should not be installed to this cable bracket.
    1. Check the interior door handle release cable for correct installation to the door latch.

    Is the interior door handle release cable correctly installed to the door latch?

    • Yes  : GO to B3.
    • No  : Install the interior door handle release cable to the door latch. If the interior door handle release cable is damaged, install a new interior door handle release cable. GO to B4.
  2. B3: INTERIOR DOOR HANDLE TEST 3
    1. Check the interior door handle release cable retaining clip and housing at the door latch for damage.

    Is the retaining clip and/or housing damaged?

  3. B4: INTERIOR DOOR HANDLE TEST 4
    1. Open the door.
    2. Using a suitable tool, close the door latch claw to the fully latched position.
    3. Using the interior door handle, attempt to open the door latch.

    Did the door latch open?

  4. B5: INTERIOR DOOR HANDLE TEST 5
    1. Check the operation of the interior door handle and door latch:
      • Close the door fully.
      • Using the smart key, double lock the vehicle.
        NOTE: The door should open during this sub-step.
        • Using the interior door handle, attempt to open the door.
        • Using the smart key, unlock the vehicle.
        NOTE: The door should not open during this sub-step.
      • Using the interior door handle, attempt to open the door.
    2. Perform step  1 a total of five times.

    Did the interior door handle and door latch function correctly during every test?
