Input/Output Diagram - Sheet 2 Of 5 - Exterior Handle And Door Latch
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

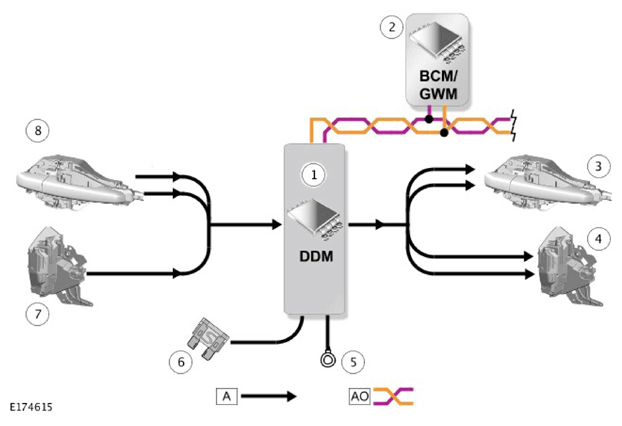

A = HARDWIRED; AO = MS CAN BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Driver Door Module (DDM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Driver exterior door handle - to deployment motor and Light Emitting Diode Driver Module (LEDDM) |
| 4 | Driver door latch - to locking motor and double locking motor (where fitted) |
| 5 | Ground |
| 6 | Permanent power feed |
| 7 | Driver door latch - from unlock switch |
| 8 | Driver exterior door handle - from handle unlock and lock capacitive areas |
