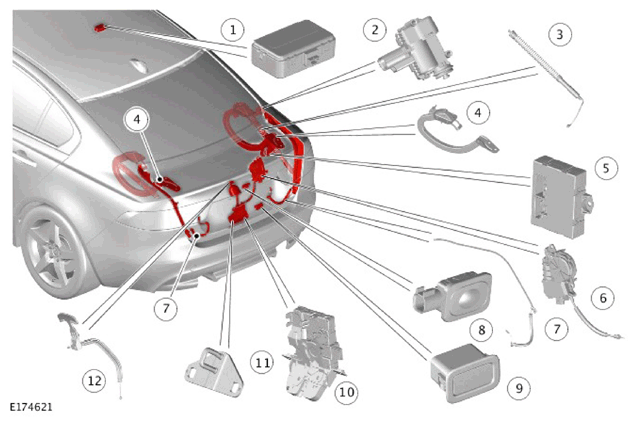

Component Location - Central Door Locking System (Sheet 3 Of 3)
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Radio Frequency (RF) receiver |
| 2 | Fuel flap release motor |
| 3 | Luggage compartment lid actuator - 2 of |
| 4 | Luggage compartment lid hinge - 2 of |
| 5 | Luggage Compartment Lid Control Module (LCLCM) |
| 6 | Luggage compartment lid closing motor |
| 7 | Luggage compartment anti-trap sensor - 2 of |
| 8 | Luggage compartment lid exterior unlock switch |
| 9 | Luggage compartment lid interior switch |
| 10 | Luggage compartment lid latch |
| 11 | Luggage compartment lid striker |
| 12 | Emergency latch release handle |
