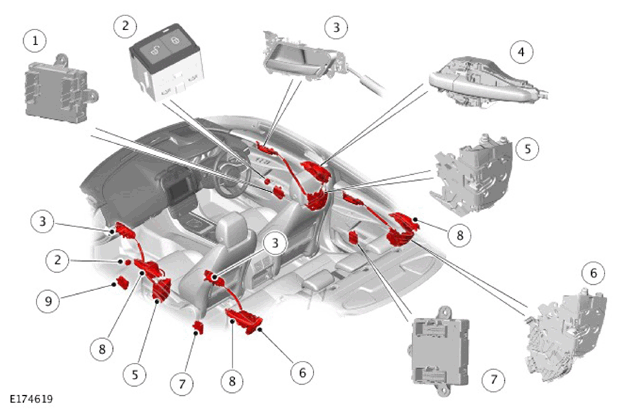

Component Location - Central Door Locking System (Sheet 2 Of 3)

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

ITEM	DESCRIPTION
1	Driver Door Module (DDM)
2	Central Door Locking (CDL) switch - 2 of
3	Interior door handle - 4 of
4	Driver door exterior door handl
5	Front door latch - 2 of
6	Rear door latch - 2 of
7	Rear Door Module (RDM) - 2 of
8	Passenger door exterior door handle - 3 of
9	Passenger Door Module (PDM)
