Component Location - Central Door Locking System (Sheet 1 Of 3)

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

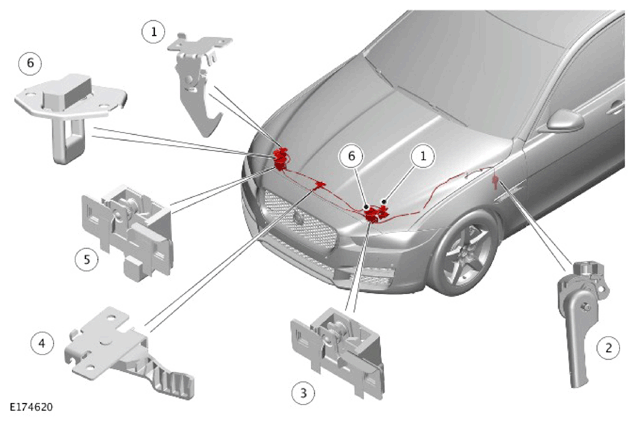

G11312210
ITEM DESCRIPTION
1 Hook
2 Hood release lever
3 Hood latch
4 Hood lever
5 Hood latch with hood switch
6 Striker
