TG1C and TG1C valve stem

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

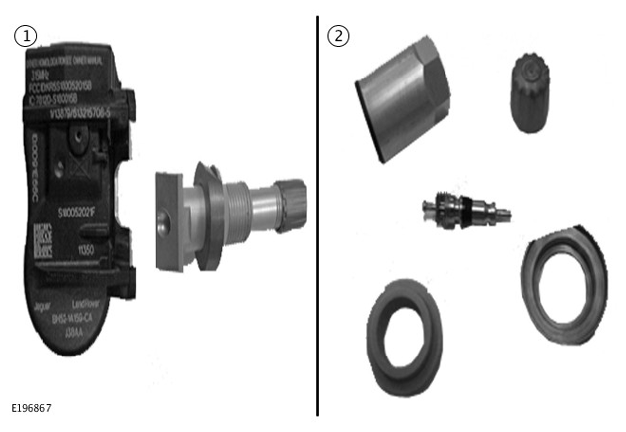

If the TPMS wheel unit is a TG1C, 2 part TPMS wheel unit, where the valve stem can be separated, then order just the C2D 29156 valve stem kit containing 5 replacement valve stems, nuts, washers. Use this sub assembly kit whenever a leak occurs between valve stem and the wheel.

NOTE: Please note that Jaguar Land Rover does not cover the snapped/damaged TPMS under warranty, this is not a manufacturing defect.

UK markets:  Valve stem kit with a shorter valve stem is C2D 48944.

G11283952
