Instrument Cluster Indications

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

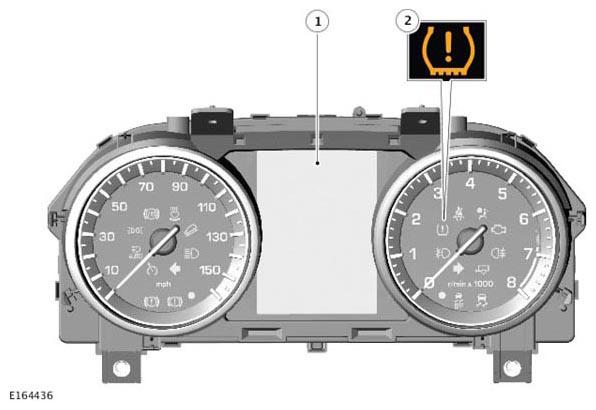

ITEM	DESCRIPTION
1	Message center
2	Amber warning indicator

You can display the recommended and the actual tire pressures in the IC message center as well as changing the pressure units (KSA, PSI or bar) and you can select light or heavy load in the Vehicle Info and Tire Pressure Check Instrument panel menus.

The warning indications to the driver are common on all vehicles fitted with TPMS. Warnings are conveyed by an amber warning indicator together with a text message, a supporting graphic, or both of these which appear in the message center.

The warning indicator and the message center are driven by CAN messages from the TPM module. The cluster software makes the warning indicator come on continuously when the tire pressure is low and the indicator flashes for 75 seconds and then stays on when there is a sensor or system failure.

For additional information, refer to: Information and Message Center .
