Deactivation / Activation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Chock the wheels and make sure that all personnel are clear of the vehicle before carrying out the following procedure.
NOTE:
  • To be carried out in the event that the vehicle has no electrical power.
  • Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (414-01, General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Wheel and Tire (204-04, Removal and Installation).

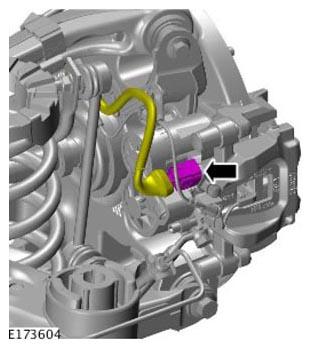

  4. G11308680
  5. CAUTION: Discard the bolt.
    NOTE: Remove and discard the O-ring seal.
    G11308661

    Torque: 8 Nm

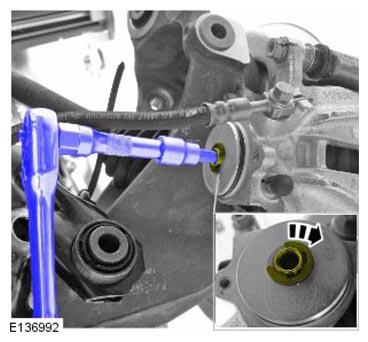

  6. G11297285
  7. Repeat the above procedure for the other side.

    ACTIVATION

  8. CAUTION: A new O-ring seal is to be installed.

    To install, reverse the removal procedure.

  9. Calibrate the electric parking brake (EPB) using the diagnostic tool.
