Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

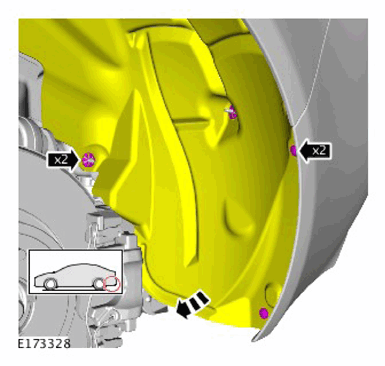

  2. NOTE: Repeat the step for the other side.
    G11312401

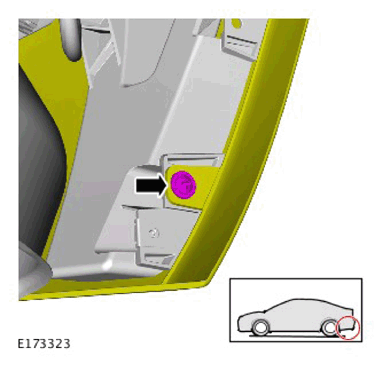

  3. NOTE: Repeat the step for the other side.
    G11312402

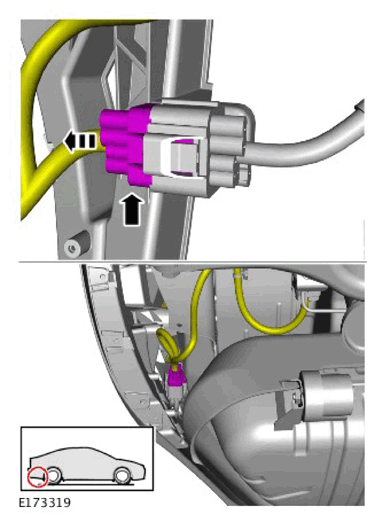

  4. G11312403

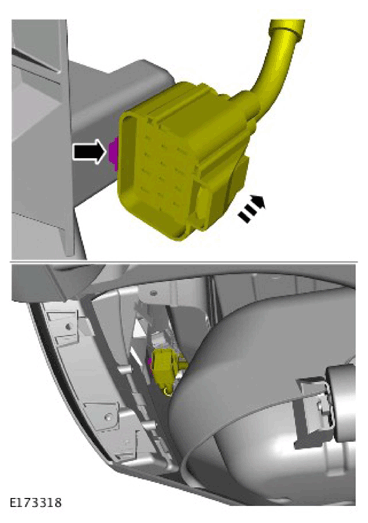

  5. G11312404

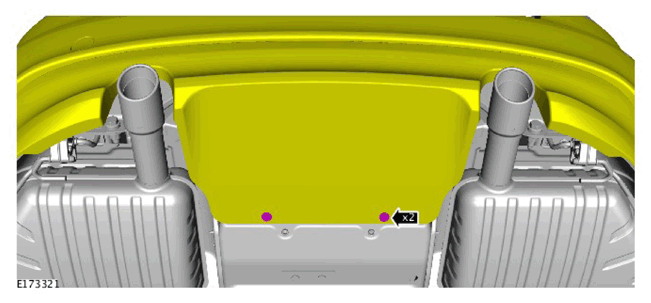

  6. G11312405

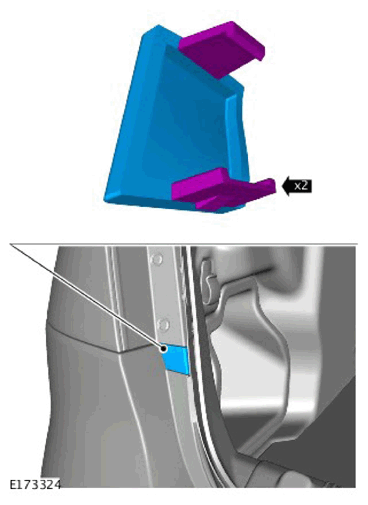

  7. NOTE: Repeat the step for the other side.
    G11312406

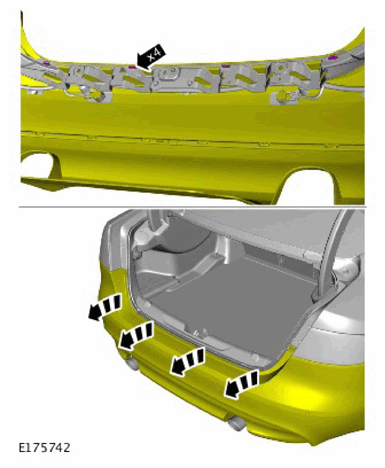

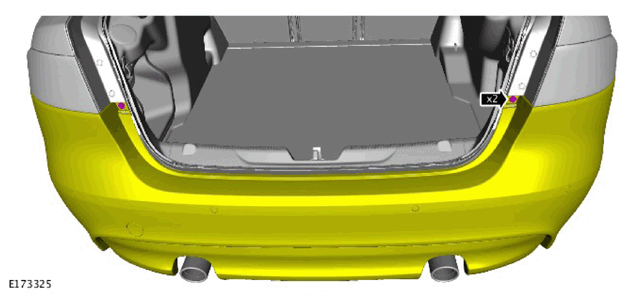

  8. G11312407
  9. G11312408

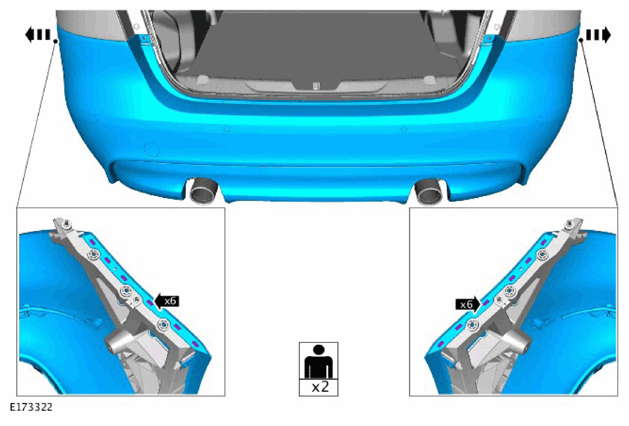

  10. CAUTION: Make sure to protect the paintwork.
    G11312409
  11. NOTE: Do not disassemble further if the component is removed for access only.

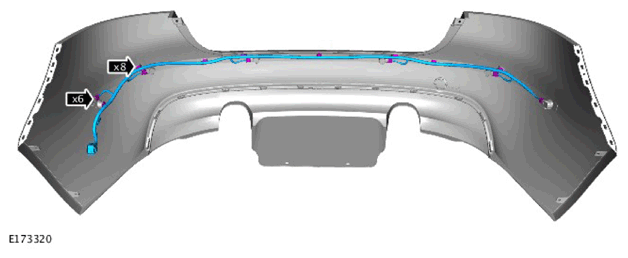

    G11312410

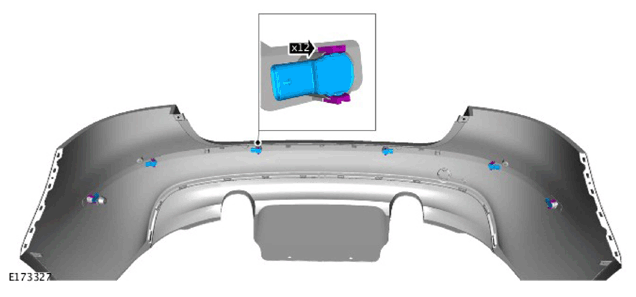

  12. G11312411
