Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Front Bumper .

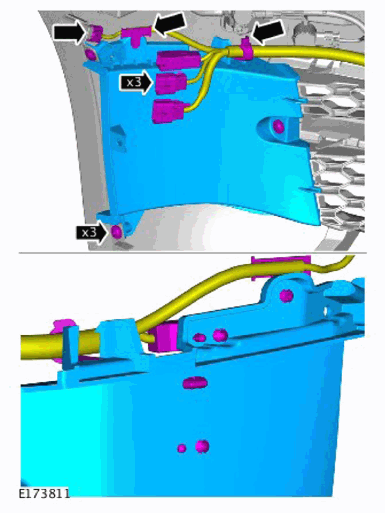

  3. G11312398

    Torque Specification: 2.5 Nm

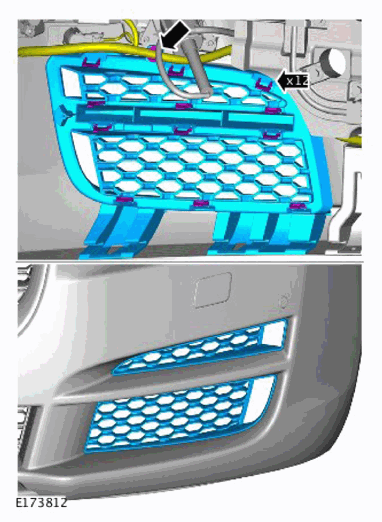

  4. G11312399
