Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • The ignition must be switched off.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.

  2. Refer to: Radiator Splash Shield .

  3. NOTE: Left side only.
    G11312377
  4. NOTE: Right side only.
    G11312378
  5. NOTE: Repeat the step for the other side.
    G11312379

    Torque Specification: 2.5 Nm

  6. G11312380

    Torque Specification: 1.7 Nm

  7. G11312381
  8. G11312382
  9. NOTE:
    • Do not disassemble further if the component is removed for access only.
    • Repeat the step for the other side.
    G11312383

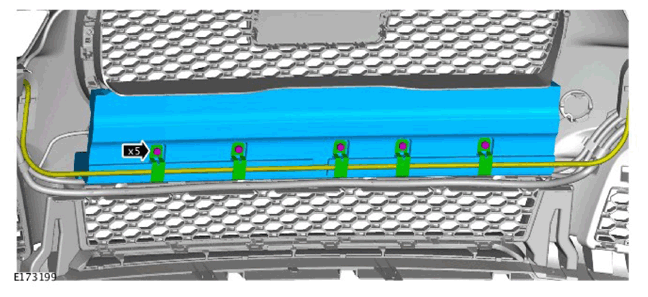

  10. G11312384

    Torque Specification: 0.5 Nm

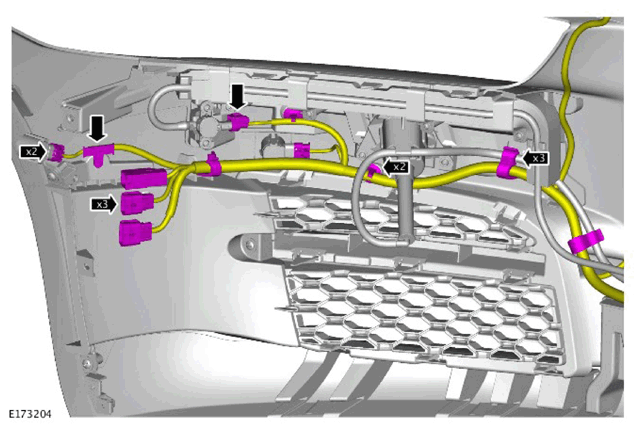

  11. CAUTION: Take extra care not to damage the wiring harnesses.
    G11312385

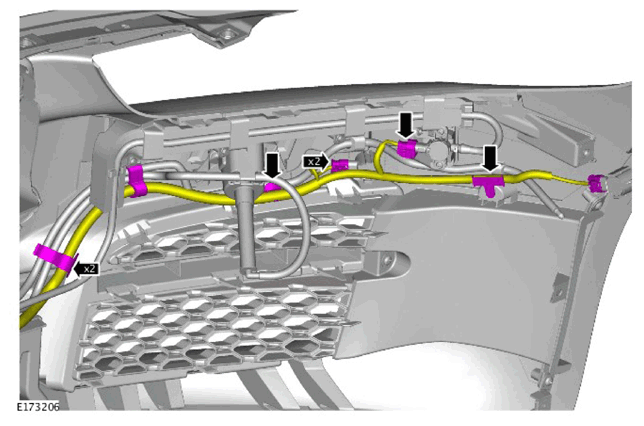

  12. CAUTION: Take extra care not to damage the wiring harnesses.
    G11312386

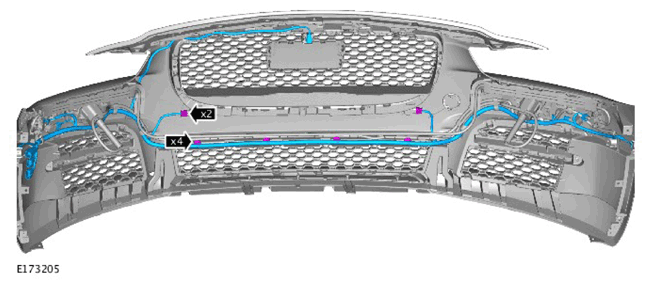

  13. G11312387

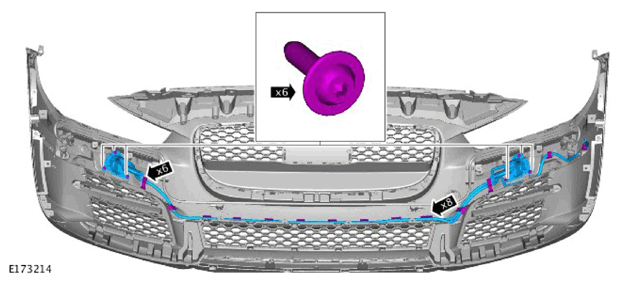

  14. G11312388

    Torque Specification: 2.5 Nm

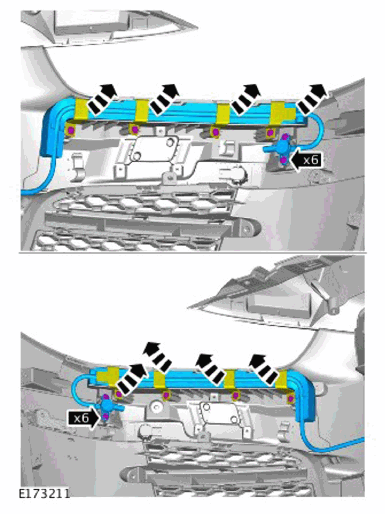

  15. G11312389

    Torque Specification: 2 Nm

  16. G11312390
  17. G11312391

    Torque Specification: 2 Nm

  18. G11312392

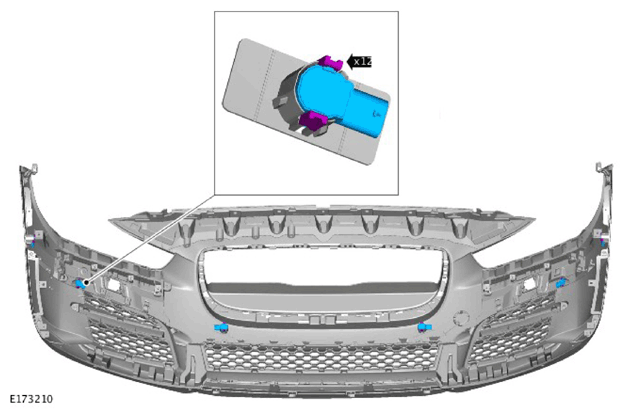

  19. G11312393

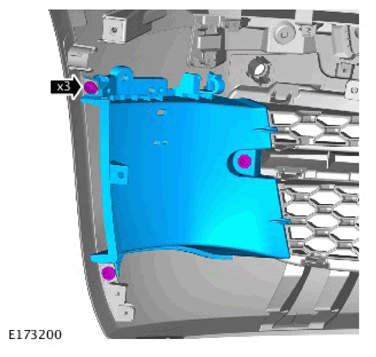

  20. NOTE: Repeat the step for the other side.
    G11312394

    Torque Specification: 2 Nm

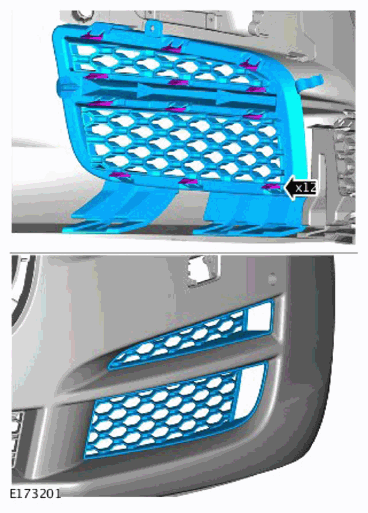

  21. NOTE: Repeat the step for the other side.
    G11312395

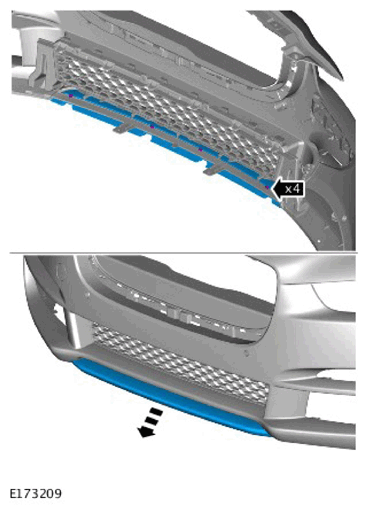

  22. G11312396

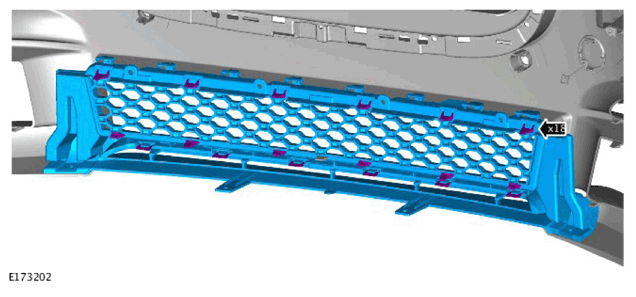

  23. G11312397
