Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustration showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

  2. Remove the air deflector.

    Refer to: Air Deflector .

  3. Remove the exhaust system.

    Refer to: Exhaust System .

  4. CAUTION:
    • Make sure the HO2S wiring harness is not twisted more than 180 degrees and is not in contact with the exhaust.
    • If accidentally dropped or knocked install a new sensor.
    • Make sure that the mating faces are clean and free of foreign material.

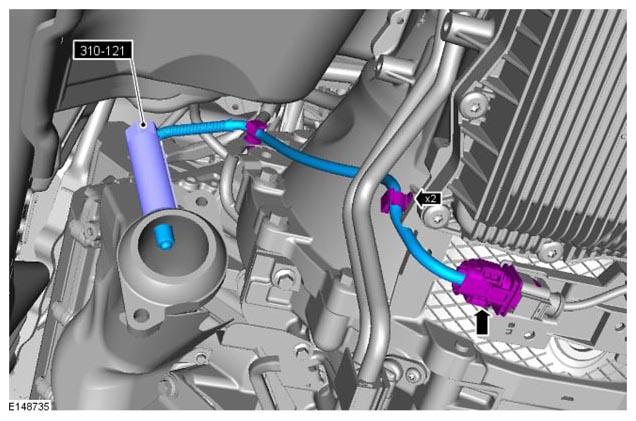

    G11291489
    • Disconnect the electrical connector and release the clips.
    • Using the special tool remove the Heated Oxygen Sensor (HO2S) LH

      Special Tool(s):  310-121
