Electronic Engine Controls - Sheet 4 Of 4

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

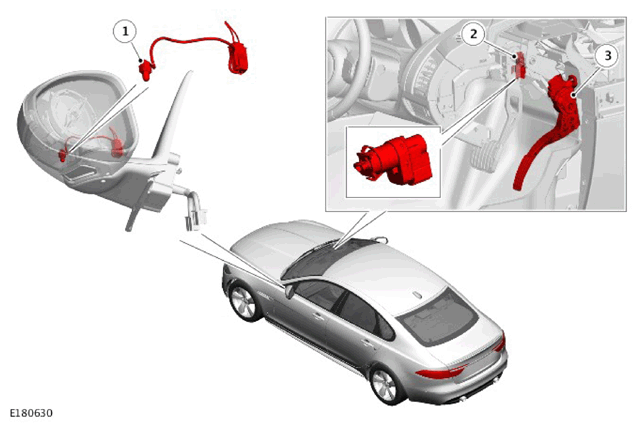

G11308460
ITEM DESCRIPTION
1 Ambient Air Temperature sensor (AAT)
2 Brake pedal switch
3 Accelerator Pedal Position sensor (APP)
