Electronic Engine Controls - Sheet 3 Of 4
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

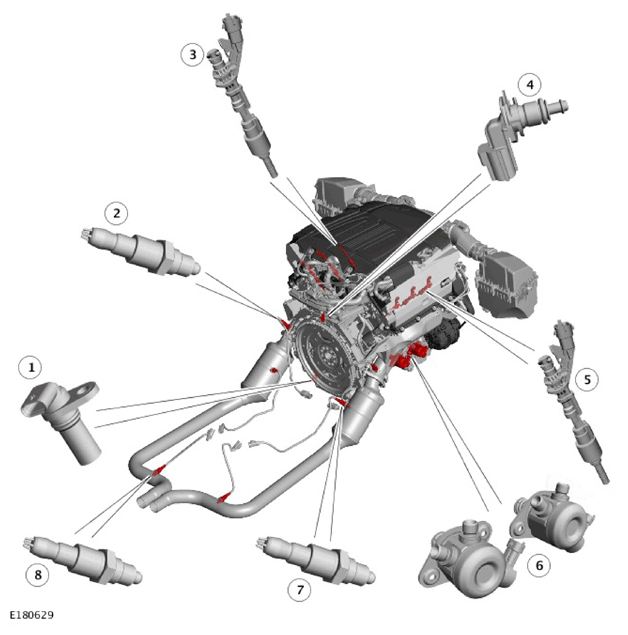

| ITEM | DESCRIPTION |
|---|---|
| 1 | Crankshaft Position (CKP) sensor |
| 2 | Pre-Catalyst Heated Oxygen Sensor (HO2S) - (2 off) |
| 3 | Fuel injector - Bank 2 (3 off) |
| 4 | Engine Coolant Temperature (ECT) sensor 1 |
| 5 | Fuel injector - Bank 1 (3 off) |
| 6 | High Pressure (HP) fuel pump (2 off) |
| 7 | Mid-Catalyst Heated Oxygen Sensor (HO2S) - (2 off) |
| 8 | Post-Catalyst Heated Oxygen Sensor (HO2S) - (2 off) |
