Electronic Engine Controls - Sheet 2 Of 4
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

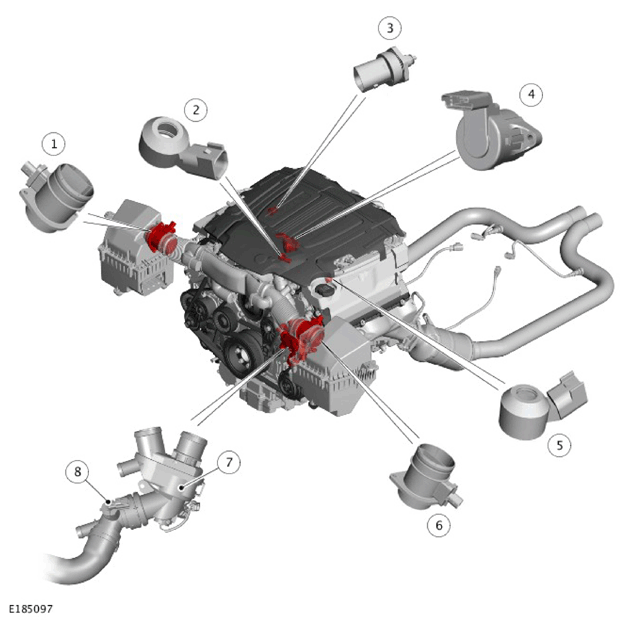

| ITEM | DESCRIPTION |
|---|---|
| 1 | Right Mass Air Flow and Temperature (MAFT) sensor |
| 2 | Knock sensor - Bank 2 |
| 3 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 4 | Bypass valve actuator |
| 5 | Knock sensor - Bank 1 |
| 6 | Left Mass Air Flow and Temperature (MAFT) sensor |
| 7 | Electric thermostat |
| 8 | Engine Coolant Temperature (ECT) sensor 2 |
