Balance Shaft Assembly (G224462): Removal

WARNING: This page is about a different car, the 2019 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to: All vehicles

Before completing the balance shaft repair, make sure to have followed the Noise, Vibration and Harshness (NVH) balance shaft test procedure.
Refer to: NVH BALANCE SHAFT TEST
Remove the front bumper for access.
Refer to: FRONT BUMPER
Remove the coolant module for access.
Refer to: COOLING MODULE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the throttle body inlet pipe clamp.
- Remove the charge air cooler retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the charge air cooler inlet pipe.
- Inspect the seals. Replace if damaged.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the charge air cooler.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Release the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the wiring harness clip.
- Remove the charge air cooler mounting bracket nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the charge air cooler mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

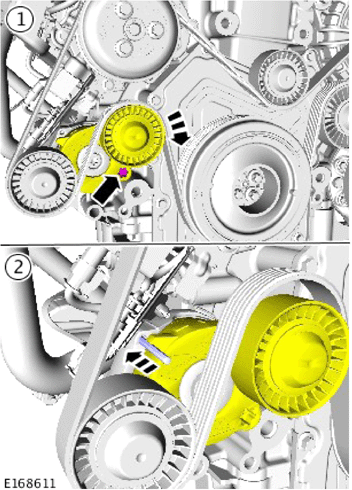

Insert a suitable tool, where illustrated, to prevent tension being applied to the accessory belt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the accessory drive belt.
Remove the transmission for access.
Refer to: TRANSMISSION - INGENIUM I4 2.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the engine brace to the vehicle.

Install the Special Tool(s): JLR-303-1633-01, JLR-303-1692, JLR-303-1692-01
NOTE: Allow 10 minutes for the engine oil to drain from the oil filter housing.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Loosen the element cover 4 complete turns to allow engine oil to drain from the filter cap.
- Make sure that the O-ring seal is exposed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the oil filter element.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Drain and discard the engine oil.

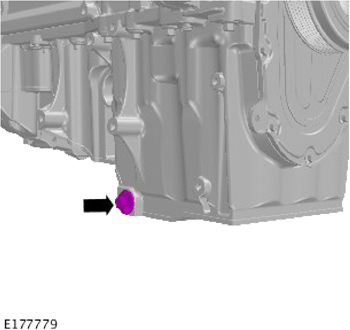

Install a new oil pan drain plug.
Renew Part: Oil pan drain plug Quantity: 1 .

Torque: 23 N m
NOTE: The engine may require rotating to the correct position before the special tool can be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install special tool JLR-303-1630 to the crankshaft damper. Make sure the central hub is located correctly.

Install the Special Tool(s): JLR-303-1630

The following step(s) applies to: Vehicles with manual transmission
NOTE:
- Slacken the bolts of the clutch pressure plate each 2 turns at a time in the sequence shown.
- Discard the bolts.
Fig 1: Clutch Assembly Loosening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove clutch assembly.
WARNING: This step requires the aid of another technician.

NOTE: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

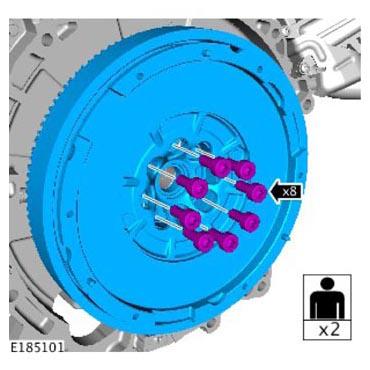

Remove the flywheel.

The following step(s) applies to: Vehicles with automatic transmission
NOTE: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the drive plate.

The following step(s) applies to: All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

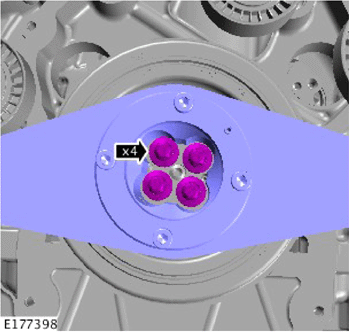

Remove 4 crankshaft damper bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the crankshaft damper locking tool and damper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

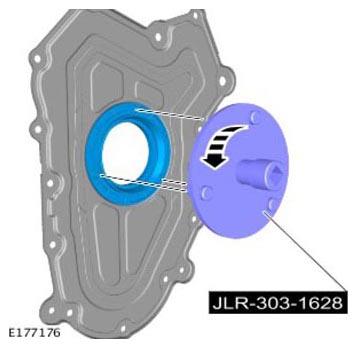

Using the special tool remove and discard the front crankshaft seal.

Install the Special Tool(s): JLR-303-1628
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the upper idler pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the left side idler pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the accessory drive belt tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine front cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect Crankshaft Position Sensor (CKP) electrical harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the bolt from the upper timing cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the lower timing cover upper bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

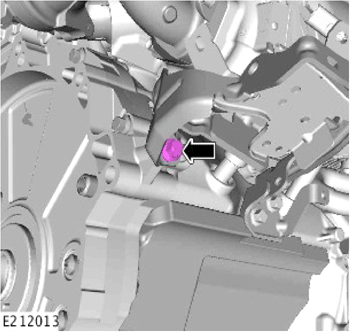

Remove the bracket bolt.
CAUTION:
- Note the position of the bolts, prior to removal.
- Be prepared to collect escaping oil.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the lower timing cover bolts. Using a suitable tool, remove the lower timing cover.
NOTE: The crankshaft may require rotating to correctly position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

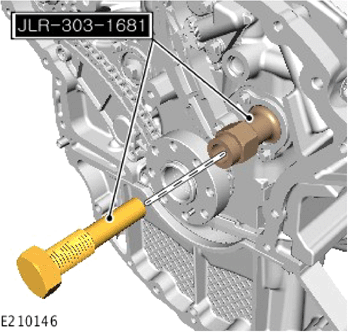

Install the special tool end plate to the front of the engine, make sure the crankshaft pin aligns correctly.

Special Tool(s): JLR-303-1681
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosely install the 2 bolts into the crankshaft, but do not tighten at this stage. A small amount of crankshaft movement may be required in other steps to assist the install of the balance shaft alignment tools.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Gently rotate the end plate to align with the bolt holes, install the 4 bolts.

Torque:

10 Nm
NOTE: If the alignment tool will not correctly locate in the rear of the balance shaft, carefully rotate the crankshaft a small amount at the drive plate end of the engine until the alignment tool is installed. The crankshaft will only require small movements, do not over rotate.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosely install the balance shaft alignment tool, rotate the tool carefully to align with the balance shaft holes (1).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure the balance shaft alignment tool and bolt are installed correctly. The alignment tool must touch the end plate with no gap (1). The alignment tool bolt must be screwed into the end plate until it stops, there will be a gap of approximately 2.5 mm (2).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the balance shaft bolt and washer.
CAUTION: Install the special tool finger tight only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Carefully install the balance shaft gear retaining tool, do not tighten at this stage.
CAUTION: Install the special tool finger tight only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the release bolt into the balance shaft gear retaining tool, do not tighten, install finger tight at this stage.
CAUTION: Do not rotate the bolt without countering the adapter direction, failure to follow this instruction may result in damage to the vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using suitable tools, rotate the release bolt clockwise and the balance shaft gear retaining tool counter clockwise in one action to release the balance shaft from the gear taper (1). Do not continue to rotate the release bolt when the balance shaft has been released from the taper.
CAUTION: The balance shaft gear retainer must remain on the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the release bolt, but do not remove the balance shaft gear retainer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the extension tool to the balance shaft gear retainer.
CAUTION: Do not over tighten the guide.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the balance shaft guide through the extension and carefully thread the guide into the end of the balance shaft.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the alignment tool bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Supporting points 1 and 2 in the illustration by hand, carefully slide the complete balance shaft assembly through the engine until the alignment tool (2) is free from the end plate.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the balance shaft alignment tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Holding the balance shaft end, carefully slide the complete assembly through the engine to install the new balance shaft.
- Rotate the balance shaft and guide in opposite directions to release the balance shaft when installed.
