Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: The fixing must be fully tightened immediately following installation. Do not leave the fixing partially installed as adhesive may be activated.

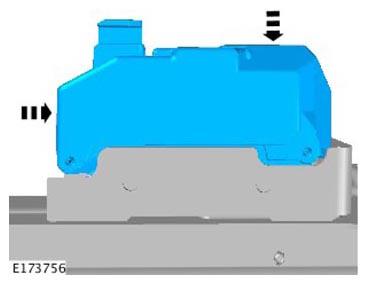

    G11308853

    Apply pressure to the steering column lock actuator as shown then install and tighten the tamper proof fixings simultaneously until the head sheers.

  2. To install, reverse the removal procedure.
  3. Calibrate the steering column lock actuator as new module, using Jaguar approved diagnostic equipment.
