Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Take extra care not to damage the wiring harness clips.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect .

  2. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  3. Refer to: Driver Side Register .

    Refer to: Passenger Side Register .

  4. Refer to: Floor Console .
  5. Refer to: Passenger Airbag Module .
  6. Refer to: Audio Unit .
  7. Refer to: A-Pillar Trim Panel .
  8. Refer to: Instrument Cluster .
  9. Refer to: Clockspring .
  10. Refer to: Sunload Sensor .
  11. Refer to: INSTRUMENT PANEL SPEAKER .
  12. Refer to: In-Vehicle Temperature Sensor .
  13. G11305695
  14. G11305696
  15. CAUTION: Take extra care not to damage the component.

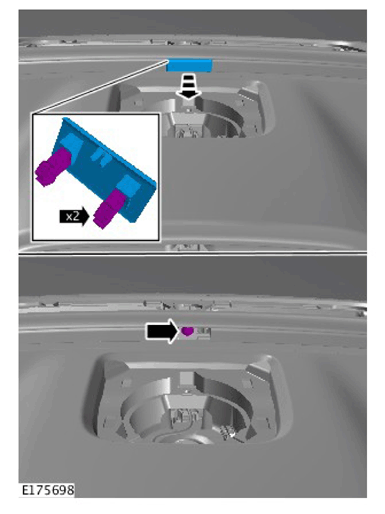

    G11312189

    Torque: 9 Nm

  16. CAUTION: Take extra care not to damage the component.
    NOTE: Repeat step for the other side.

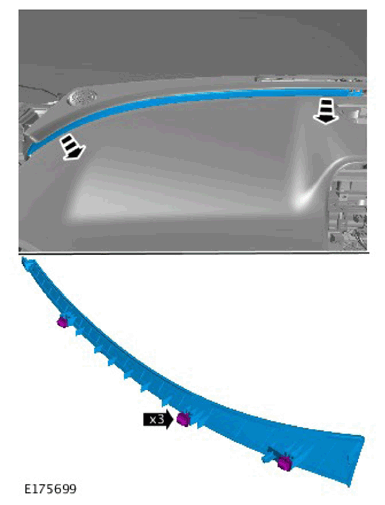

    G11312190
  17. CAUTION: Take extra care not to damage the component.
    NOTE: Repeat step for the other side.
    G11312191
  18. G11312192

    Torque: 9 Nm

  19. G11312193

    Torque: 20 Nm

  20. G11312194

    Torque: 9 Nm

  21. CAUTION:
    • Take extra care not to damage the component.
    • Protect the surrounding paintwork to avoid damage.
    • Protect the surrounding trim to avoid damage.
G11312195
