Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use a suitable trim tool.
NOTE:
  • It is not necessary to remove the lower instrument panel when removing the floor console.
  • It is not necessary to remove the front seats when removing the floor console.
  • Removal steps in this procedure may contain installation details.

All vehicles

  1. Make the air bag supplemental restraint system (SRS) safe.

    Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions .

  2. Refer to: Battery Disconnect and Connect .
  3. G11305693
  4. G11305694

    Vehicles with manual transmission

  5. G11305697
  6. G11305698

    All vehicles

  7. NOTE: This procedure must be carried out on both sides.
    G11305699

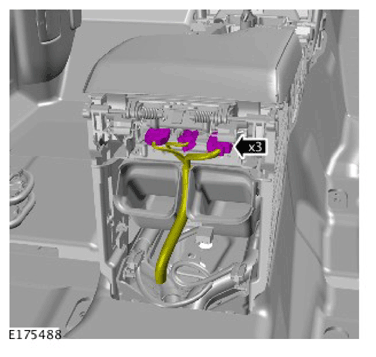

  8. G11312147

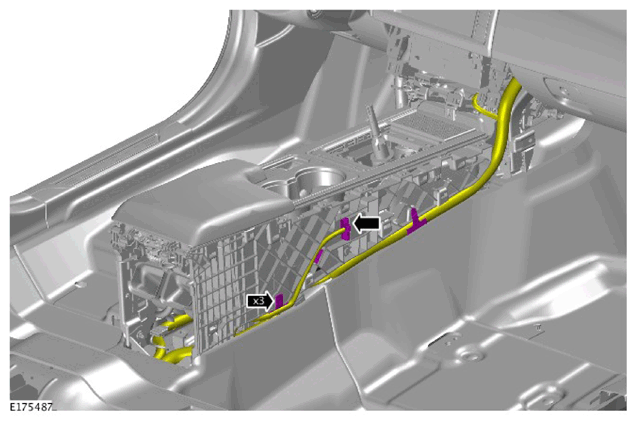

  9. NOTE: This procedure must be carried out on both sides.
    G11312148

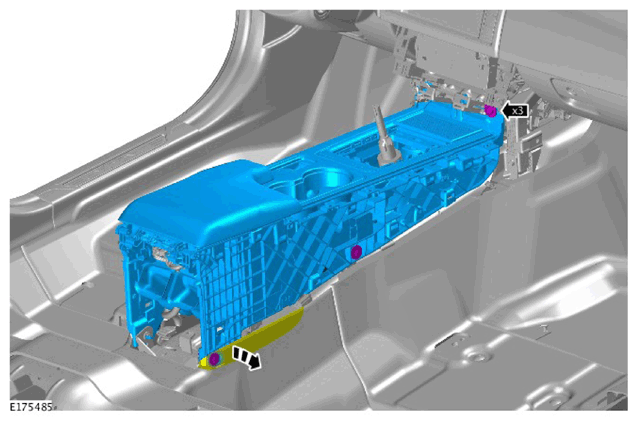

  10. G11312149

    Torque: 9 Nm

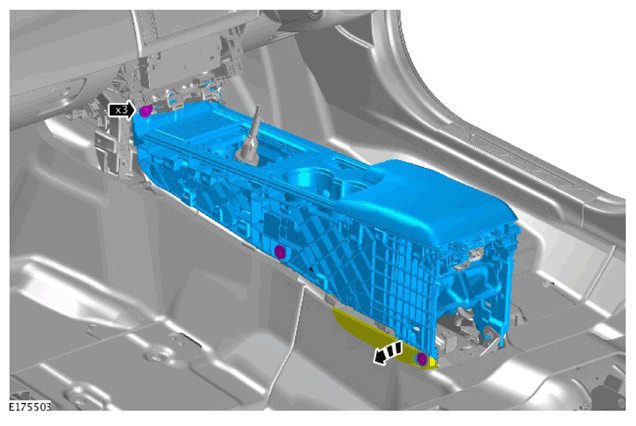

  11. G11312150

    Torque: 9 Nm

    Vehicles with manual transmission

  12. NOTE: Do not disassemble further if the component is removed for access only.
    G11305700

    Vehicles with automatic transmission

  13. NOTE: Do not disassemble further if the component is removed for access only.
    G11305701

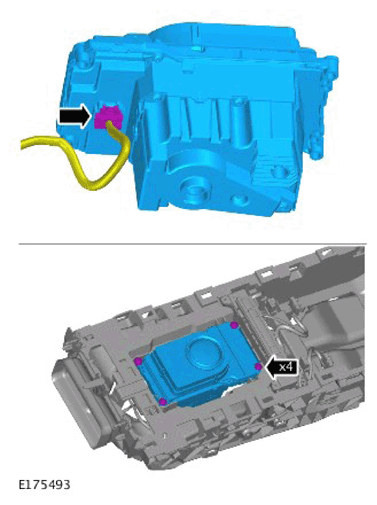

  14. G11312153

    All vehicles

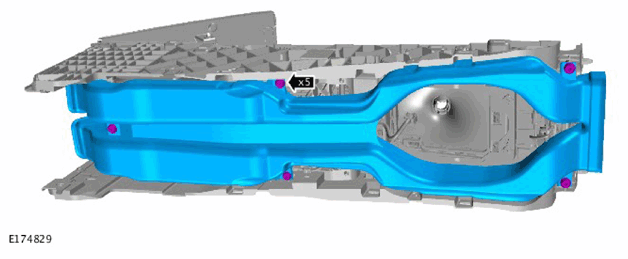

  15. G11312154

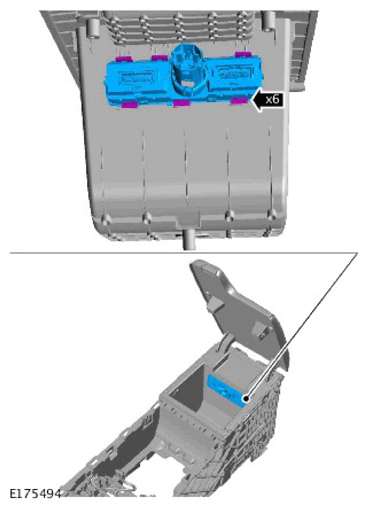

  16. G11312155

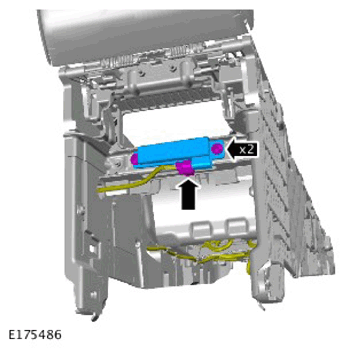

  17. G11312156

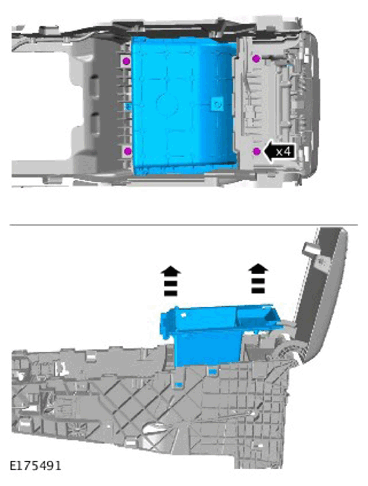

  18. G11312157

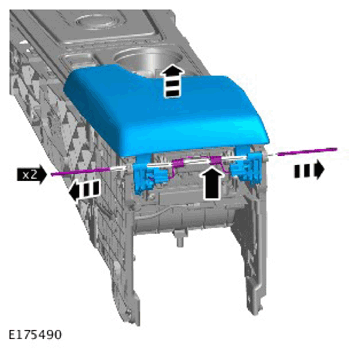

  19. G11312158

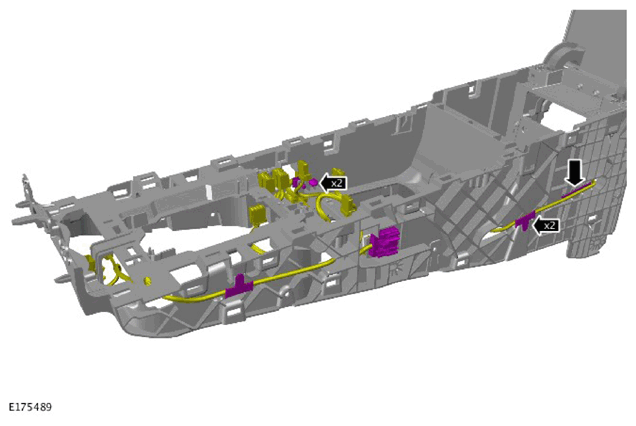

  20. G11312159

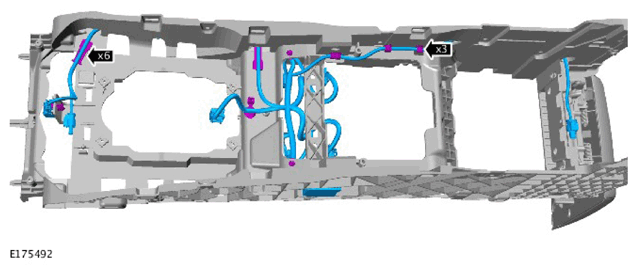

  21. G11312160
