Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  1. Raise and support the vehicle.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Refer to: Wheel Knuckle .

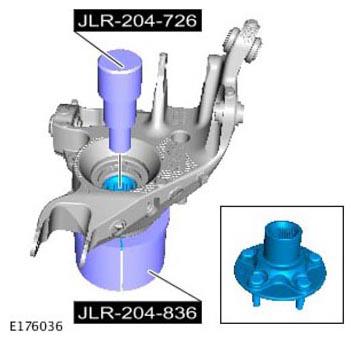

  3. G11305600

    Special Tool(s):  204-726, JLR-204-836

    General Equipment:  Hydraulic press

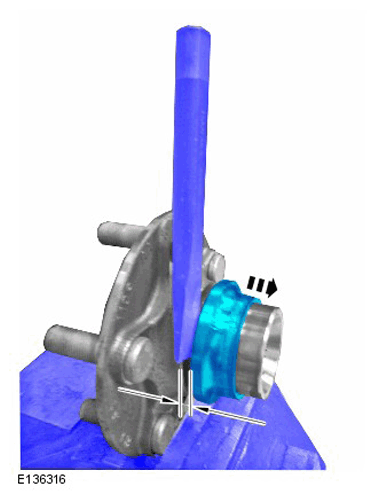

  4. G11283784

    General Equipment:  Punch

    General Equipment:  Vise

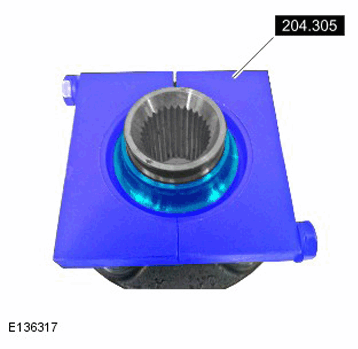

  5. G11283785

    Special Tool(s):  204-305

    General Equipment:  Hydraulic press

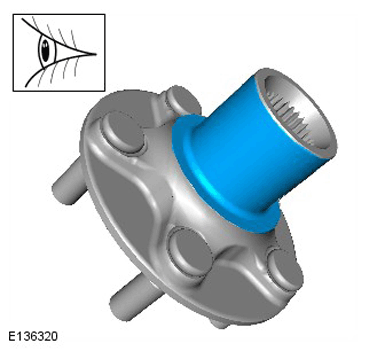

  6. Clean and inspect the components for deterioration.
    G11283786
  7. NOTE: Note the orientation of the clips prior to removal.
    G11305604

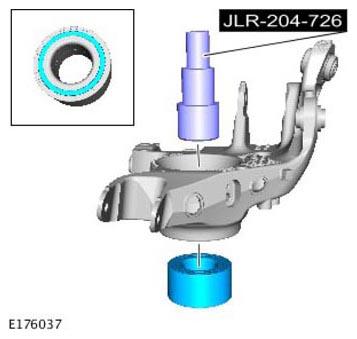

  8. NOTE: Note the orientation of the component prior to removal.
    G11305605

    Special Tool(s):  204-726

    General Equipment:  Hydraulic press

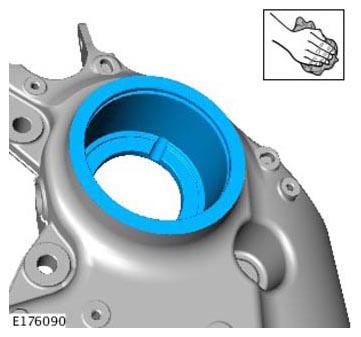

  9. Clean and inspect the components for deterioration.
    G11305606
