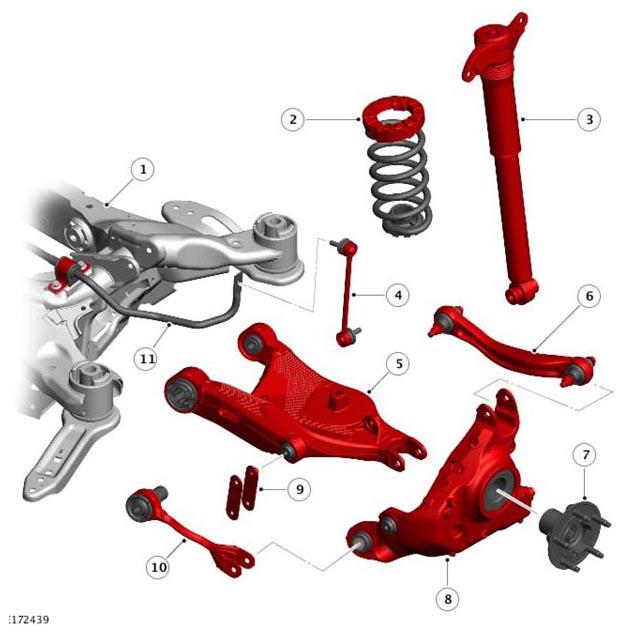

Suspension Components
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
Subframe |
| 2 |
Spring |
| 3 |
Shock absorber |
| 4 |
Stabilizer bar link |
| 5 |
Lower control arm |
| 6 |
Upper control arm |
| 7 |
Wheel hub |
| 8 |
Wheel knuckle |
| 9 |
Link - lower control arm to wheel knuckle |
| 10 |
Tie arm |
| 11 |
Stabilizer bar |
