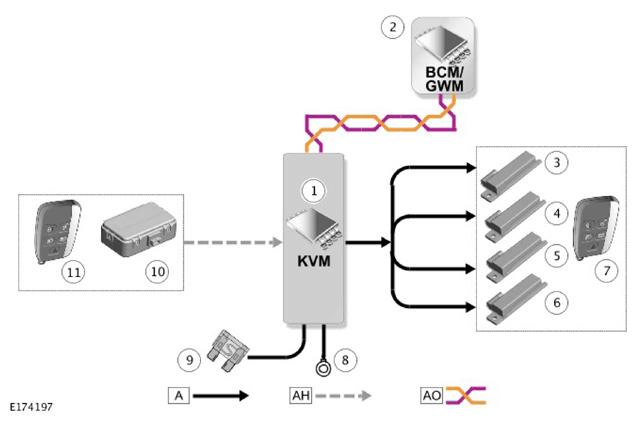

Input/Output Diagram - Sheet 1 Of 2 - Key Detection
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AO = MS (MEDIUM SPEED) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS; AH = SERIAL COMMUNICATION LINE.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Keyless Vehicle Module (KVM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Low Frequency (LF) antenna - luggage compartment front side |
| 4 | Low Frequency (LF) antenna - luggage compartment rear side |
| 5 | Low Frequency (LF) antenna - floor console |
| 6 | Low Frequency (LF) antenna - Instrument panel cross-car beam |
| 7 | Smart key |
| 8 | Ground |
| 9 | Permanent power feed |
| 10 | Smart key |
| 11 | Radio Frequency (RF) receiver |
