Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Make the air bag supplemental restraint system (SRS) safe. Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions .
  2. Remove the driver side front seat.

    Refer to: Front Row Seat (G1842018) .

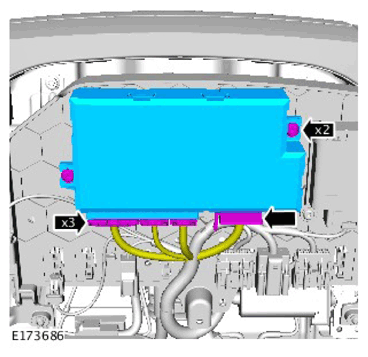

  3. G11311459

    Torque Specification: 3 Nm
