Hood Deployment Controls
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

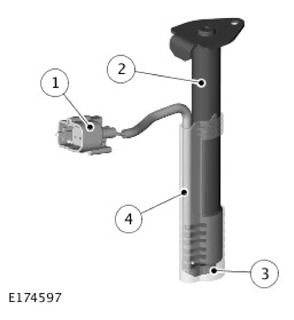

| ITEM |
DESCRIPTION |
| 1 |
Connector |
| 2 |
Hood deployment piston lifter |
| 3 |
Sealed connector |
| 4 |
Hood deployment piston sleeve |
The hood deployment controls are located on the front inner fenders just forward of the hood latches. The hood deployment controls comprise a pyrotechnic piston lifter to raise the hood.
