Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

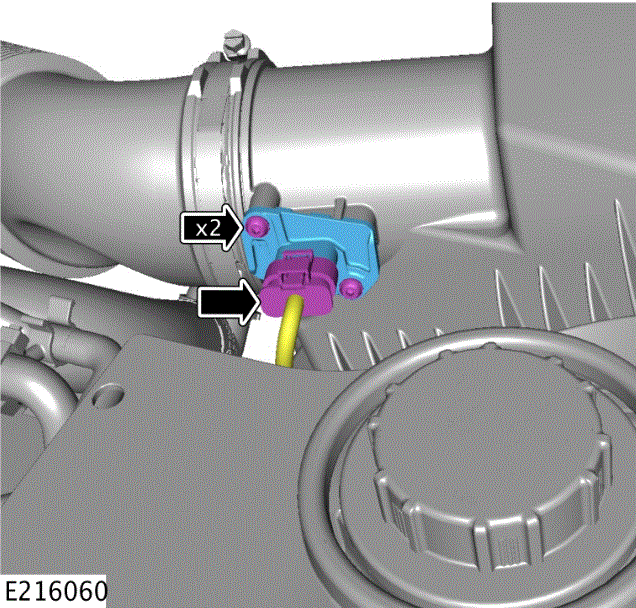

  1. G00565426

    Disconnect the Mass Air Flow (MAF) sensor electrical connector.

    Remove the MAF sensor retaining screws and remove the MAF sensor.
