Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

    General Equipment: Two-post lift

  2. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect .

  3. Remove the catalytic converter.

    Refer to: Catalytic Converter .

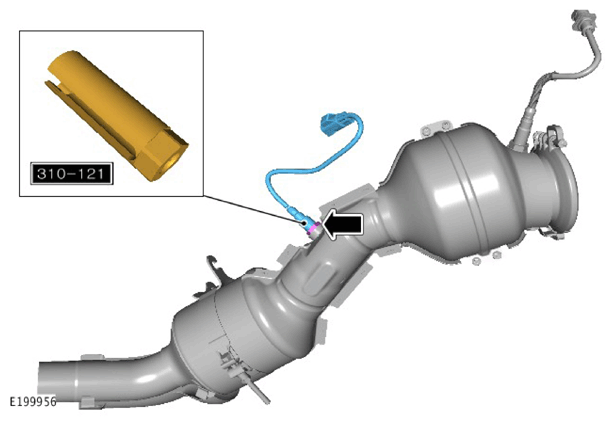

  4. G11308604

    Remove the heated oxygen sensor (HO2S).

    Special Tool(s):  310-121
