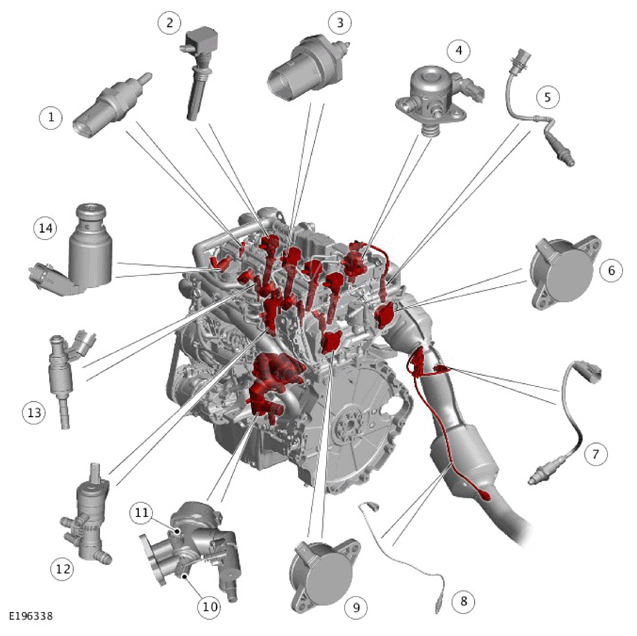

Component Location - 2 Of 4
WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Continuously variable valve lift assembly oil temperature sensor |
| 2 | Ignition coil (4 Off) |
| 3 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 4 | High Pressure (HP) fuel pump |
| 5 | Heated Oxygen Sensor (HO2S) - Pre catalyst |
| 6 | Variable Camshaft Timing (VCT) solenoid - Exhaust |
| 7 | HO2S - Mid catalyst |
| 8 | HO2S - Post catalyst - North American Specification (NAS) vehicles only |
| 9 | VCT solenoid - Intake |
| 10 | Heater element - Electric thermostat |
| 11 | Engine Coolant Temperature (ECT) sensor - Electric thermostat |
| 12 | Purge valve |
| 13 | Fuel injector (4 Off) |
| 14 | Continuously variable valve lift solenoid (4 Off) |
