Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

  2. Remove the engine undershield.

    Refer to: Air Deflector .

  3. NOTE: This step contains illustrations for left hand drive vehicles, right hand side components are similar.

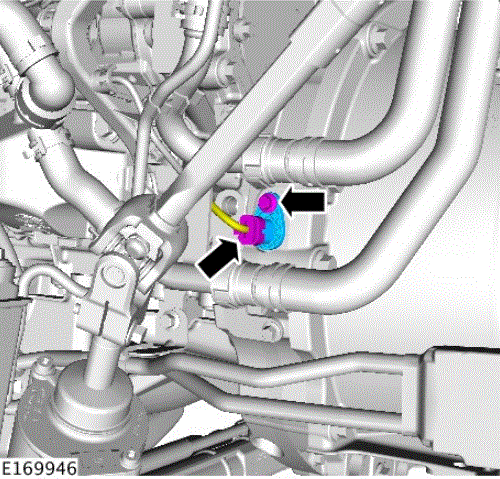

    G00565466
    • Disconnect the Crankshaft Position (CKP) sensor electrical connector.
    • Remove the CKP retaining bolt.
    • Remove the CKP sensor.
