Instrument Cluster - Conventional display
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

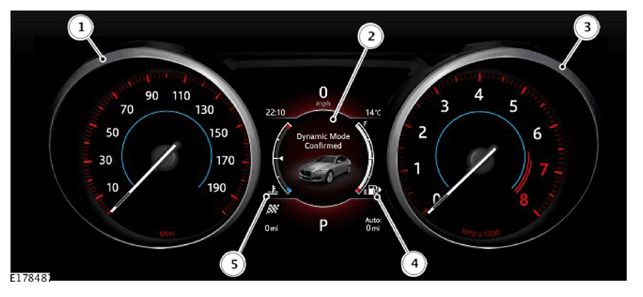

| ITEM |
DESCRIPTION |
| 1 |
Speedometer |
| 2 |
Information and message center |
| 3 |
Tachometer |
| 4 |
Fuel gauge |
| 5 |
Temperature gauge |
The Instrument Cluster (IC) - Conventional display has one light sensor located in the lower half of the engine speed tachometer part of the IC.
