FOOTWELL Lamps

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

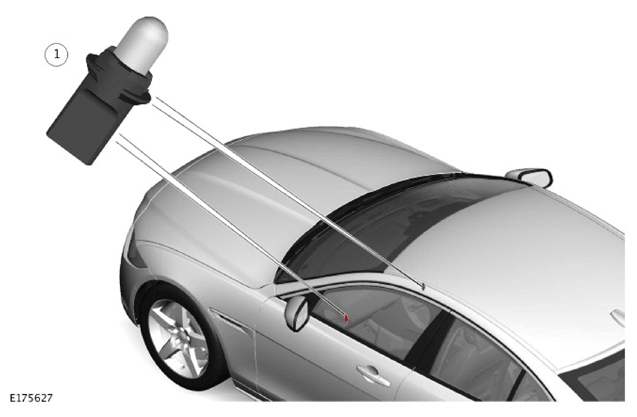

G11311162
ITEM DESCRIPTION
1 Footwell lamp (2 off)

A footwell lamp is located in each front footwell. The driver side footwell lamp is located in a bracket which is integral with the climate control system driver side floor duct. The passenger side footwell lamp is located in a bracket which is attached under the glovebox.

Each lamp comprises a halogen bulb installed in a bulb holder integrated into the vehicle instrument panel wiring harness. The footwell lamps are operated by a hard wired connection from the BCM/GWM assembly to fade the footwell lamps on and off with the interior lamps. If the automatic illumination function has been disabled, the footwell lamps are also disabled.
