Rear Ambience Lighting Light Emitting Diodes (LED)
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

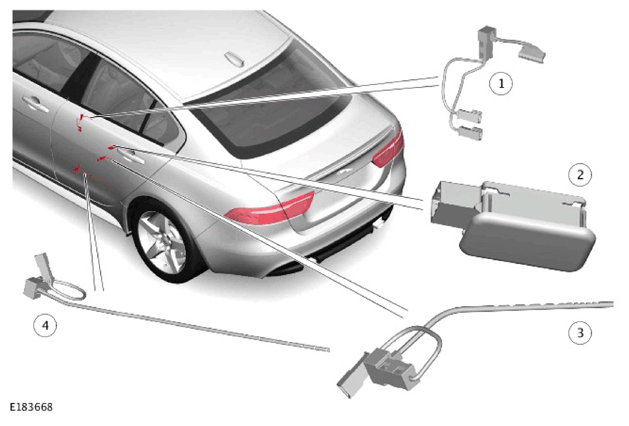

| ITEM | DESCRIPTION |
|---|---|
| 1 | Interior door handle ambience lighting Light Emitting Diodes (LED) (2 off) |
| 2 | Rear footwell ambience lighting LED (2 off) |
| 3 | Door armrest ambience lighting LED (2 off) |
| 4 | Door pocket ambience lighting LED (2 off) |
Ambience lighting Light Emitting Diodes (LED) are installed in the following locations:
- Air vents
- Footwell
- Instrument panel
- Interior door handle
- Door armrest
- Door pocket (if fitted)
- Floor console.
Each ambience lighting LED comprises three parts:
- LED light source
- A light guide
- A light guide carrier.
