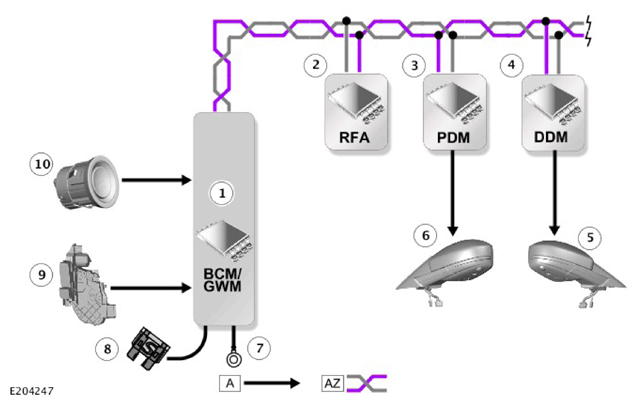

Control Diagram - 4 Of 4 - Approach Lamp
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARD WIRED: AZ = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 | Remote Function Actuator (RFA) |
| 3 | Passenger Door Module (PDM) |
| 4 | Driver Door Module (DDM) |
| 5 | Right door mirror - Approach lamp |
| 6 | Left door mirror - Approach lamp |
| 7 | Ground |
| 8 | Power supply |
| 9 | Driver door latch - Ajar switch |
| 10 | Stop/start switch |
