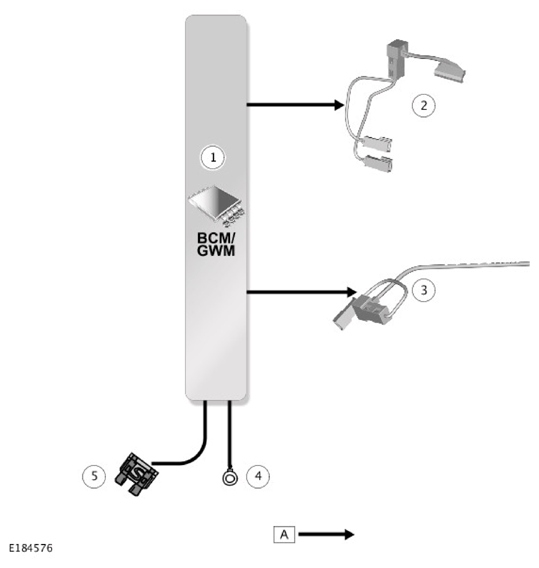

Control Diagram - 2 Of 4 - Vehicles With Low Line Interior Lighting
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver door shown, the passenger and rear doors are similar.
A = HARD WIRED.
| ITEM |
DESCRIPTION |
| 1 |
Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 |
Driver interior door handle ambience lighting Light Emitting Diodes (LED) |
| 3 |
Driver door armrest ambience lighting LED |
| 4 |
Ground |
| 5 |
Power supply |
