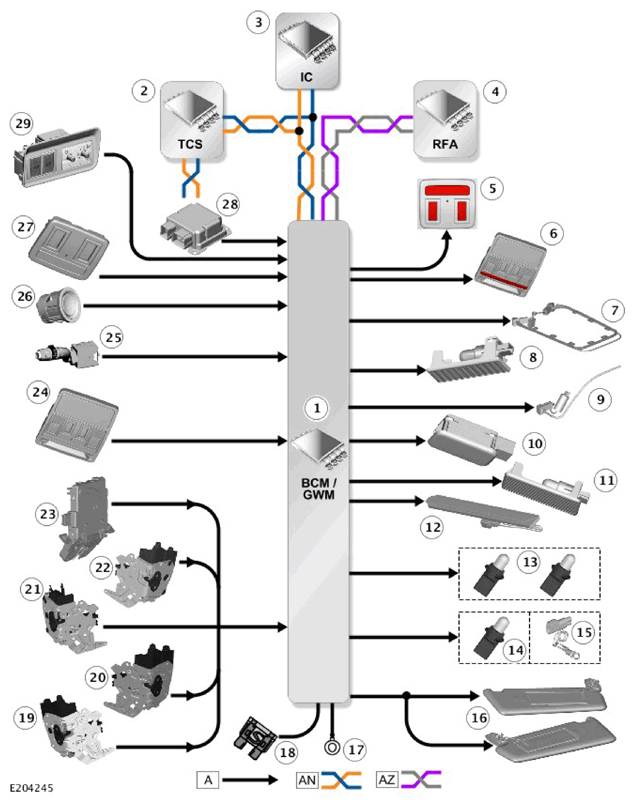

Control Diagram - 1 Of 4
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARD WIRED: AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS: AZ = HS CAN BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/GateWay Module (BCM/GWM) assembly |
| 2 | Transmission Control Switch (TCS) |
| 3 | Instrument Cluster (IC) |
| 4 | Remote Function Actuator (RFA) |
| 5 | Rear overhead console - Reading lamps and interior lamp |
| 6 | Front overhead console - Reading lamps and interior lamp |
| 7 | Floor console illumination Light Emitting Diodes (LED) |
| 8 | Luggage compartment lamp |
| 9 | Air vent ambience lighting LED (2 off) |
| 10 | Footwell ambience lighting LED (4 off) |
| 11 | Puddle lamp (4 off) |
| 12 | Treadplate illumination LED (2 off) |
| 13 | Front footwell lamp (2 off) |
| 14 | Glovebox lamp |
| 15 | Glovebox lamp switch |
| 16 | Vanity mirror LED (2 off) |
| 17 | Ground |
| 18 | Power supply |
| 19 | Rear left door latch - Ajar switch |
| 20 | Rear right door latch - Ajar switch |
| 21 | Passenger door latch - Ajar switch |
| 22 | Driver door latch - Ajar switch |
| 23 | Luggage compartment lid - Ajar switch |
| 24 | Front overhead console |
| 25 | Steering column multifunction switch - Left |
| 26 | Stop/start switch |
| 27 | Rear overhead console |
| 28 | Instrument panel dimmer control |
| 29 | Restraints Control Module (RCM) |
