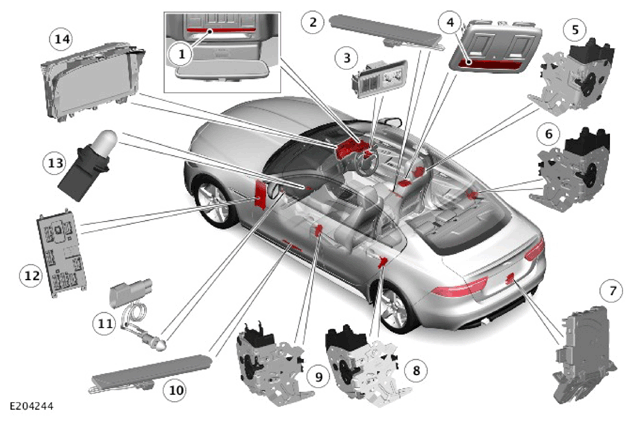

Component Location - 3 Of 3
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Front overhead console |
| 2 | Treadplate illumination Light Emitting Diodes (LED) - Right |
| 3 | Instrument panel dimmer control |
| 4 | Rear overhead console illumination |
| 5 | Driver door latch - Ajar switch |
| 6 | Rear right door latch - Ajar switch |
| 7 | Luggage compartment lid - Ajar switch |
| 8 | Rear left door latch - Ajar switch |
| 9 | Passenger door latch - Ajar switch |
| 10 | Treadplate illumination LED - Left |
| 11 | Glovebox lamp switch |
| 12 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 13 | Glovebox lamp |
| 14 | Instrument Cluster (IC) |
