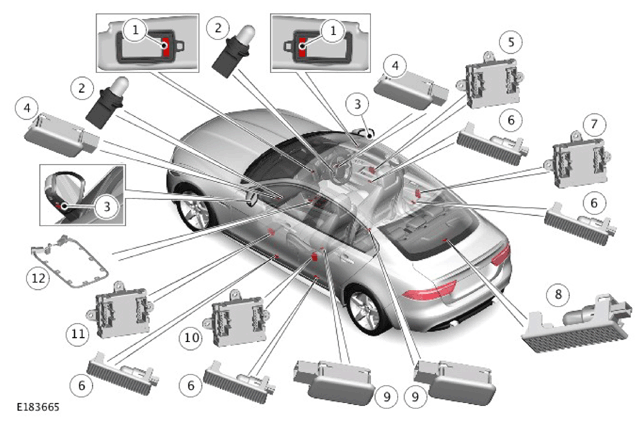

Component Location - 2 Of 3
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Sun visor - Vanity mirror lamp (2 off) |
| 2 | Footwell lamp (2 off) |
| 3 | Door mirror - Approach lamp |
| 4 | Front footwell ambience lighting Light Emitting Diodes (LED) (2 off) |
| 5 | Driver Door Module (DDM) |
| 6 | Puddle lamp (4 off) |
| 7 | Rear Door Module (RDM) - Right |
| 8 | Luggage compartment lamp |
| 9 | Rear footwell ambience lighting LED (2 off) |
| 10 | Rear Door Module (RDM) - Left |
| 11 | Passenger Door Module (PDM) |
| 12 | Floor console ambience lighting LED |
