Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Be prepared to collect escaping fuel.
Wait for a minimum of 1 minute after the engine has stopped before carrying out any repair to the fuel injection system.

CAUTION:

Before disconnecting or removing components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
Make sure that the area around the component is clean and free of foreign material.
Make sure that all openings are sealed. Use new blanking caps.

Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect .
Refer to: Engine Cover - INGENIUM I4 2.0L Diesel .
Remove the noise, vibration and harshness (NVH) material

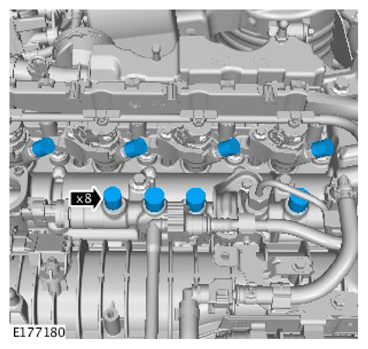

Disconnect the fuel injector electrical connectors.
Release the fuel injector fuel return line from the fuel injectors.
NOTE: To release the center connection (1) of the fuel injector fuel return line, hold down the outer arms (2) and pull up the center connection (1), then release the fuel injector fuel return line connector by pulling the outer arms (2) up.
Position the fuel injector fuel return line to one side.
NOTE: Install the blanking caps.
Detach the wiring harness.
Remove and discard the high pressure fuel pipes.
NOTE: Install the blanking caps.
Remove the fuel injector retaining clamps.
CAUTION: Discard the bolts.
Special Tool(s): 100-012, JLR-310-253
Repeat Step 9 for the remaining fuel injectors.
Remove and discard the fuel injector seal.
