Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Install a new fuel injector seal.

Renew Part: Fuel injector washer(s) Quantity: 1
Install the fuel injector.
Repeat Step 2 for the remaining fuel injectors.
Install the fuel injector retaining clamps.
CAUTION: Make sure that new bolts are installed.

Renew Part: Fuel injector clamp bolts Quantity: 1

Torque Specification:

Stage 1: 11 Nm

Stage 2: 162°

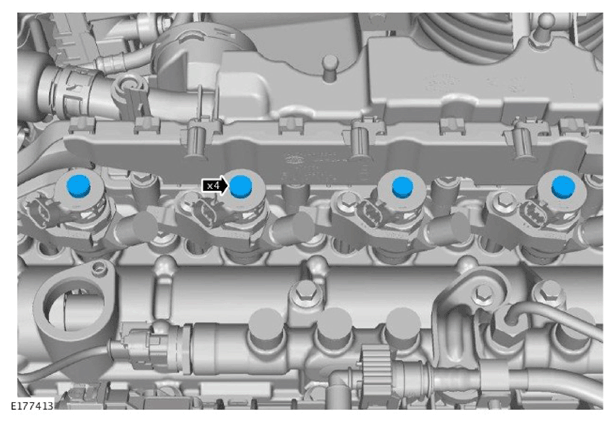

NOTE: Remove and discard the blanking caps.
Install new high pressure fuel pipes.

Renew Part: Fuel injector high pressure pipe(s) Quantity: 1

Torque Specification:

Stage 1: 10 Nm

Stage 2: 62°
Attach the wiring harness.

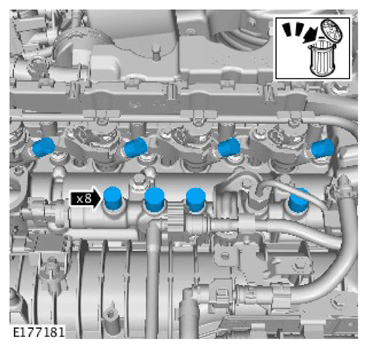

NOTE: Remove and discard the blanking caps.
Position the fuel injector fuel return line to the fuel injectors.
Connect the fuel injector fuel return line to the fuel injectors.
Connect the fuel injector electrical connectors.
Connect the battery ground cable.
Refer to: Battery Disconnect and Connect .
CAUTION: Bleed the fuel system by cranking the engine to purge the air from the system.

Bleed the fuel system.

Refer to: Fuel System Bleeding .
Install the NVH material.
Refer to: Engine Cover - INGENIUM I4 2.0L Diesel .
If new components have been installed, configure using Jaguar approved diagnostic equipment.
