Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module.
  • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
  • Do not probe supplemental restraint system (SRS) electrical connectors.
NOTE: Removal steps in this procedure may contain installation details.
  1. Make the supplementary restraint system (SRS) system safe.

    Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions .

  2. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect .

  3. Refer to: Headliner - 4-Door .

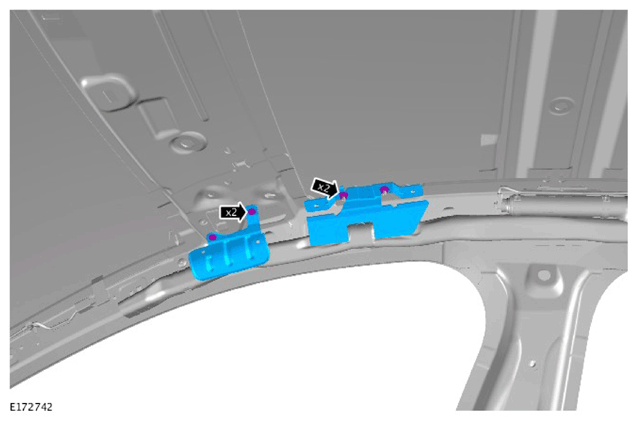

  4. G11312488

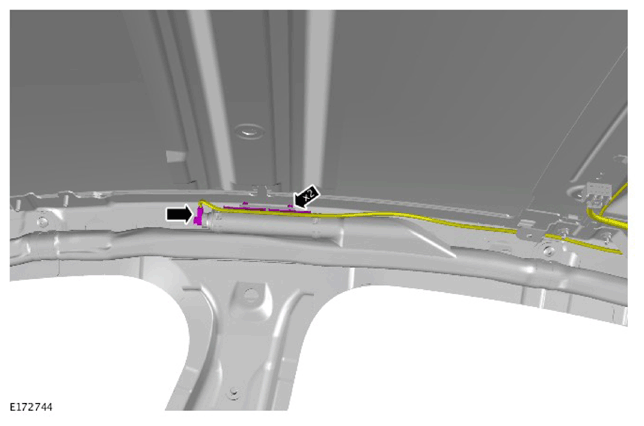

  5. G11312489
  6. CAUTION: Do not allow the side air curtain module to twist. Failure to follow this instruction may result in damage to the component.

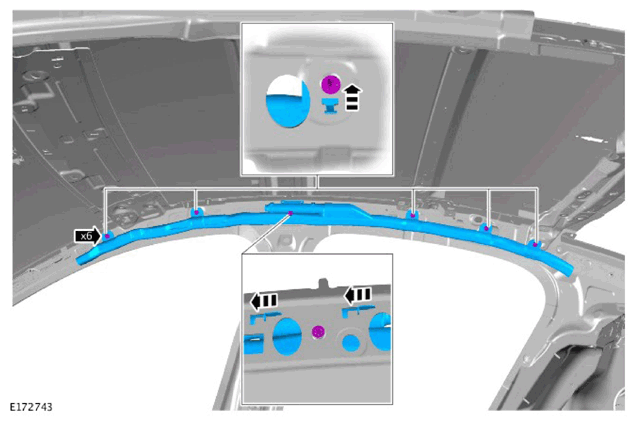

    G11312490

    Torque: 9 Nm
