Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of injury in the event of premature deployment, always carry a live air bag module with the bag and trim cover pointed away from the body. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of premature deployment, do not use radio key code savers when working on the supplemental restraint system. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of premature deployment, live air bag modules must only be placed on work benches which have been ground bonded and with the trim cover facing up. Failure to follow these instructions may result in personal injury.
  • Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure to follow this instruction may result in personal injury.
  • Painting over the driver air bag module trim cover or instrument panel could lead to deterioration of the trim cover and air bags. Do not for any reason attempt to paint discolored or damaged air bag module trim covers or instrument panel. Install a new component. Failure to follow this instruction may result in personal injury.
  • To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least one minute after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

  1. Raise the front seat to the highest position.
  2. Refer to: FRONT ROW SEAT (G1842018) .
  3. NOTE: Discard the retaining clips.
    G11312501

    Renew Part: Backrest cover and clips kit Quantity: 1.

  4. G11312505
  5. G11312506
  6. G11312507

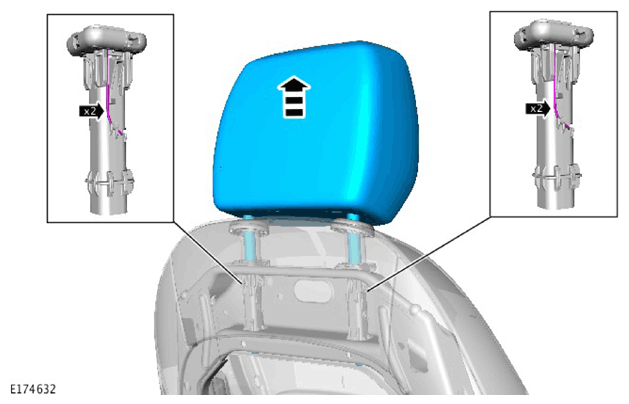

  7. G11312508
  8. G11312509
  9. G11312510
  10. G11312511
  11. G11312512
  12. G11312513

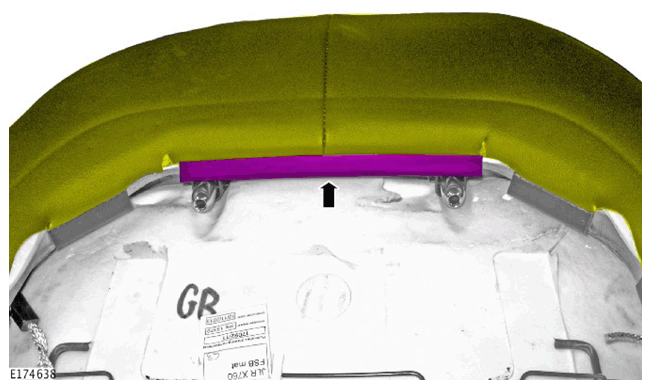

  13. G11312514

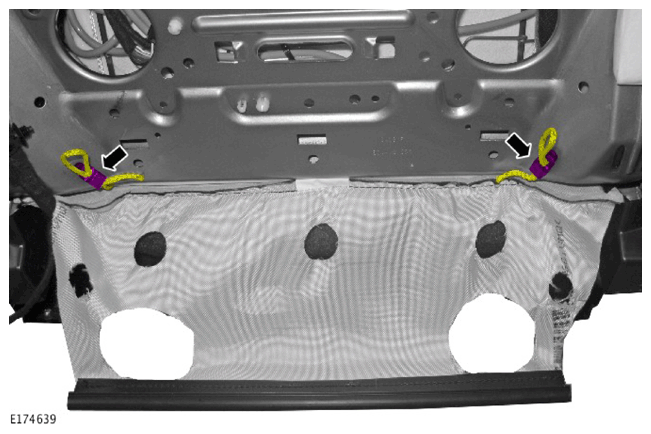

  14. G11312515

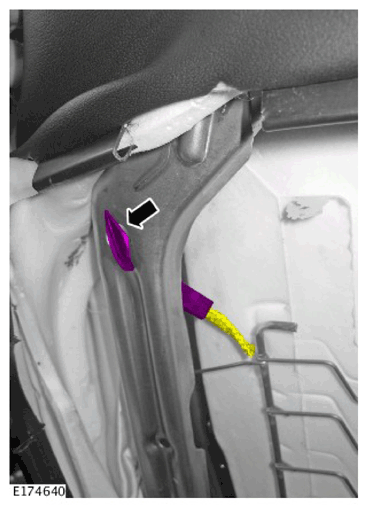

  15. G11312516

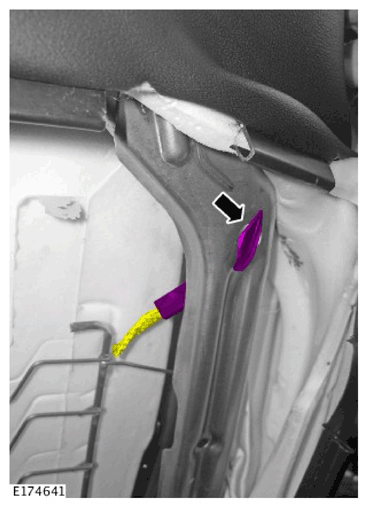

  16. G11312517
  17. NOTE: If equipped.
    G11312518

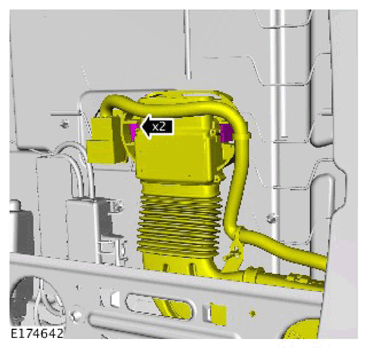

  18. G11312519
  19. WARNING:
    • Do not probe supplemental restraint system (SRS) electrical connectors.
    • The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
    NOTE: Left illustration shown, right is similar.
    G11312520

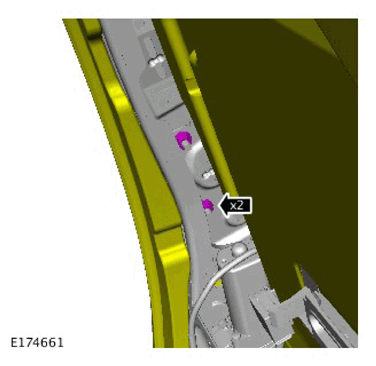

  20. G11312521

    Torque: 7 Nm

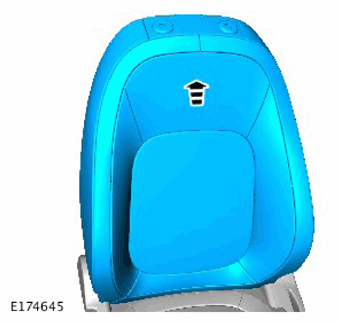

  21. G11312522

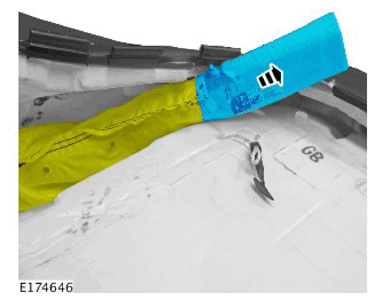

  22. WARNING: Make sure that the air bag is correctly installed in to the fabric chute. Failure to follow this instruction may result in incorrect operation of the air bag.
    CAUTION: Note the installed position of the component(s) prior to removal.
    NOTE: Do not disassemble further if the component is removed for access only.
    G11312523
