Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least two minutes after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.
  • Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to follow this instruction may result in personal injury.
  • Do not probe supplemental restraint system (SRS) electrical connectors.
NOTE: Removal steps in this procedure may contain installation details.
  1. Make the supplementary restraint system (SRS) system safe.

    Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions .

  2. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect .

  3. Refer to: Glove Compartment .

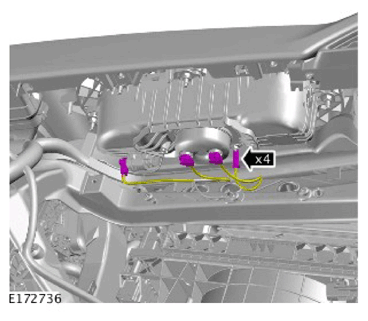

  4. G11312484

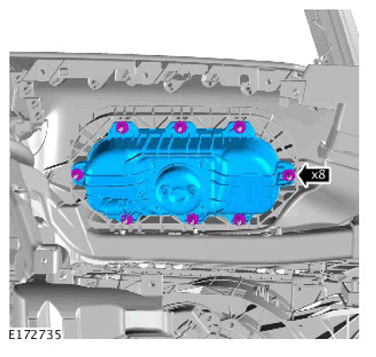

  5. G11312485

    Torque: 6.2 Nm
